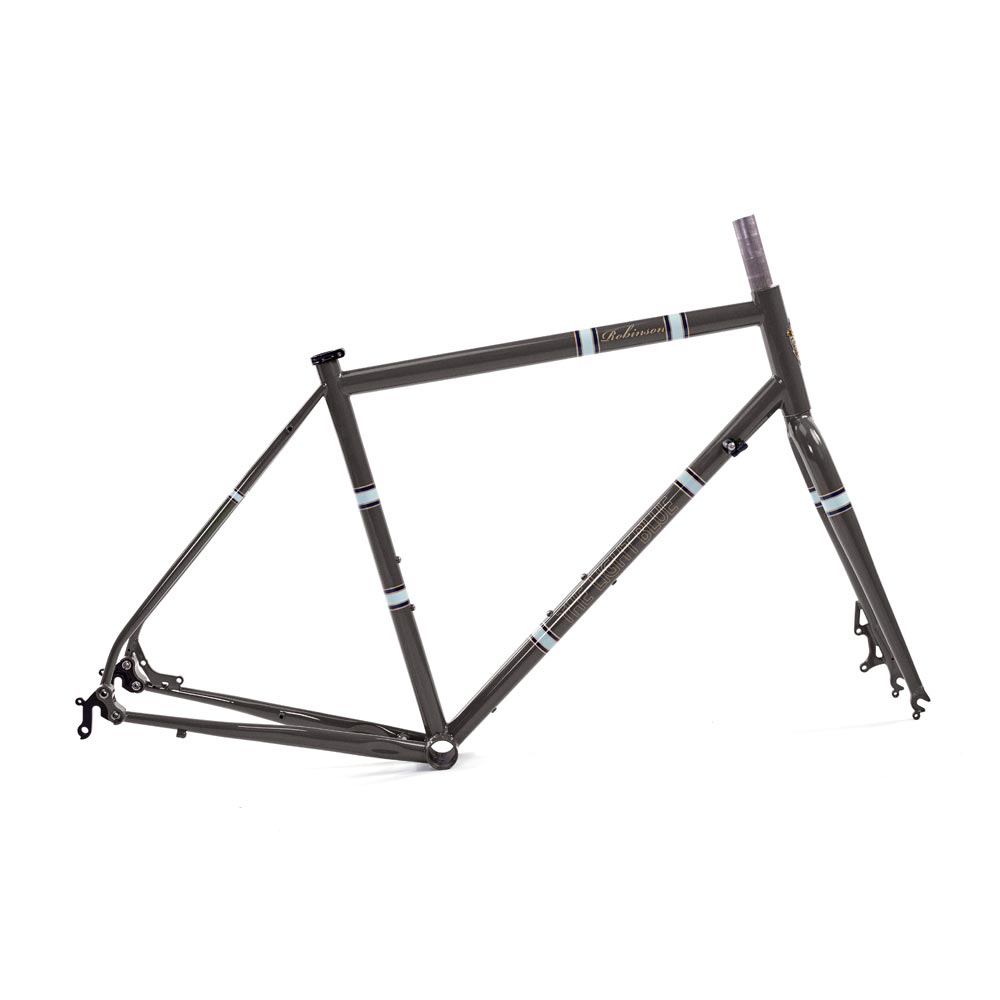

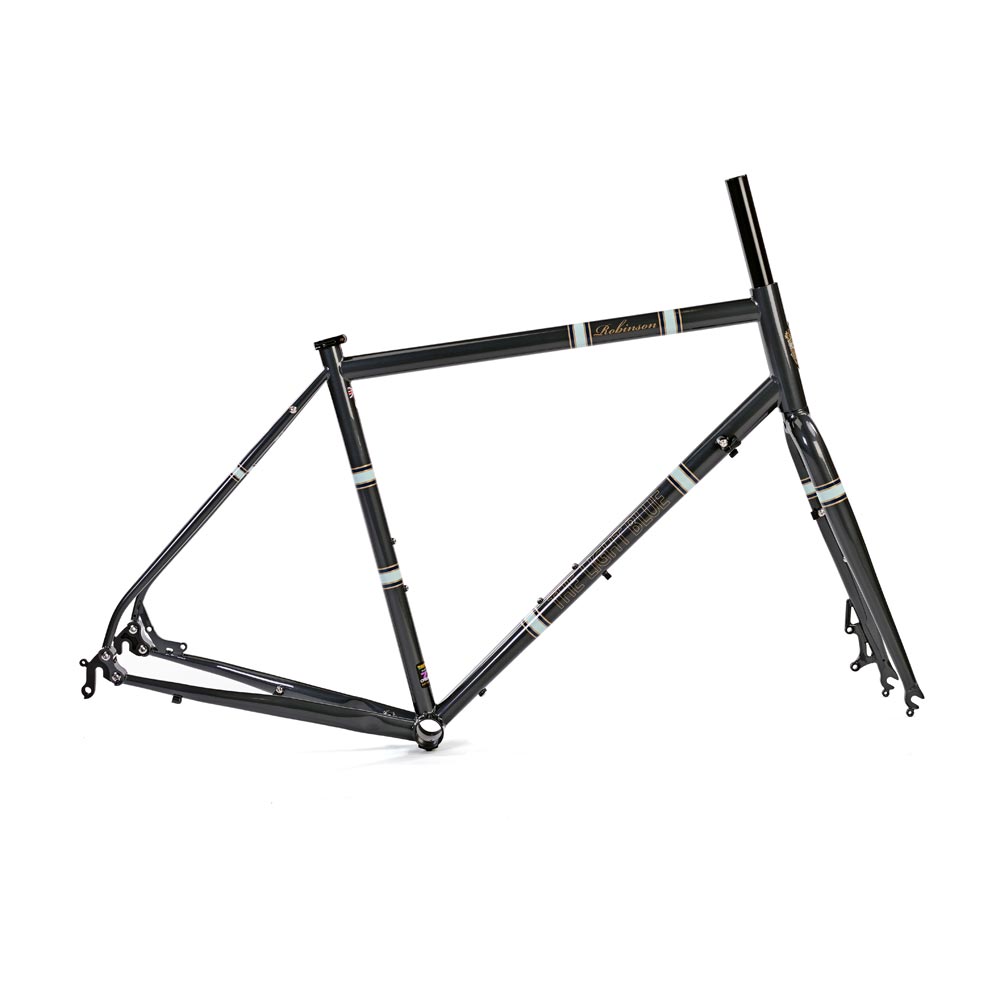

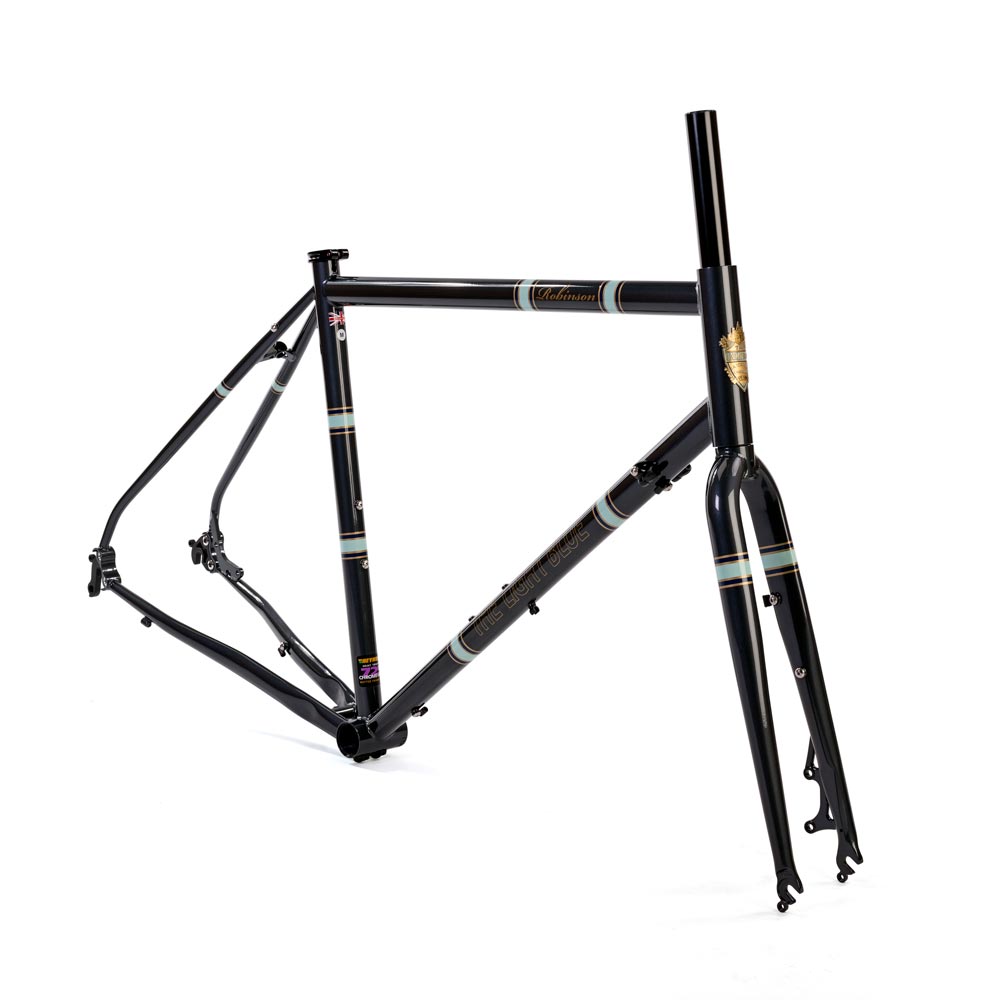

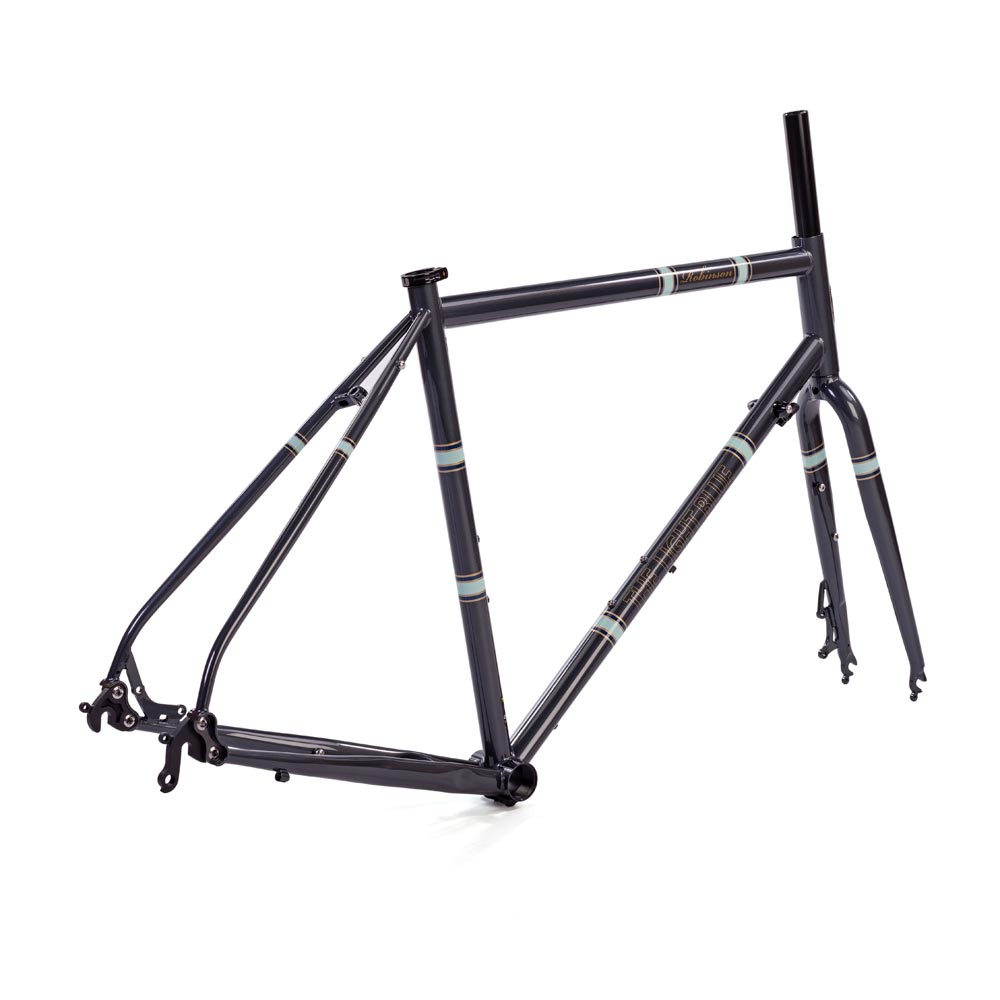

Robinson V2 Frameset

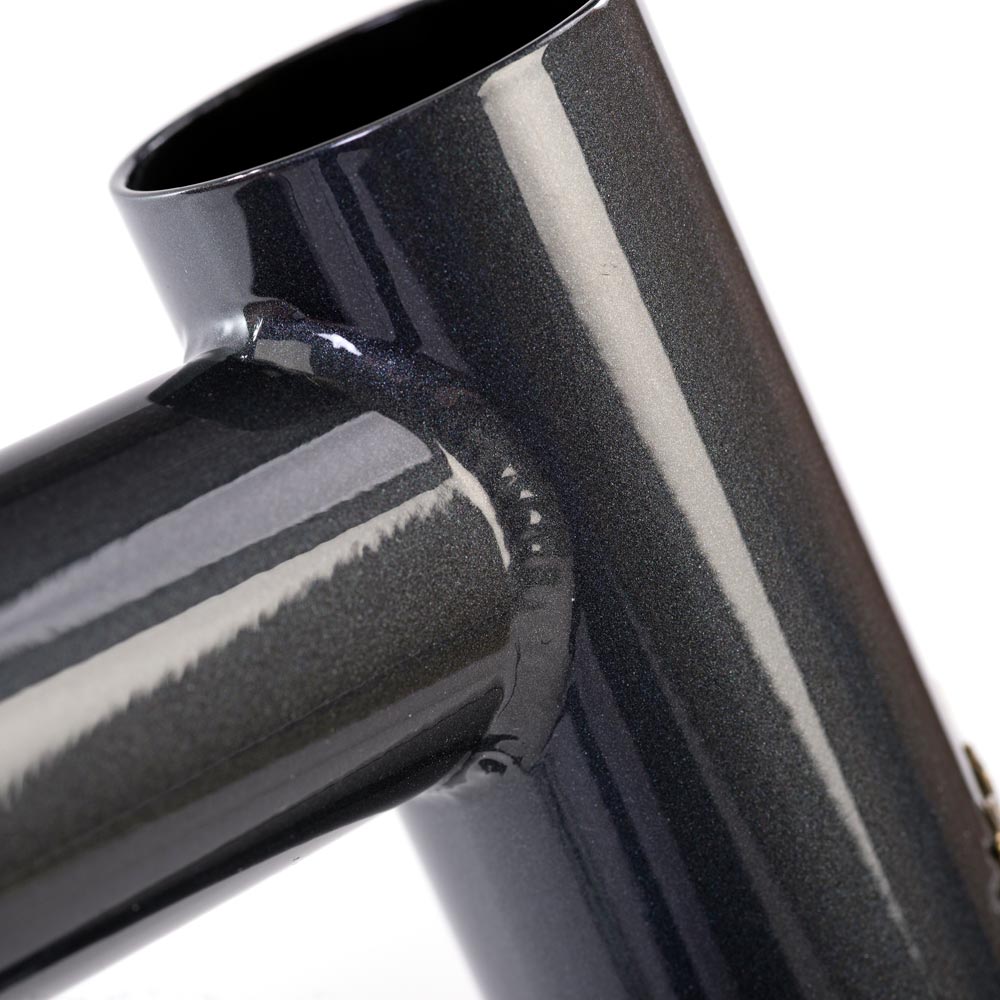

The Robinson is a versatile modern, lightweight, tig welded Reynolds 725 steel tubed sports frameset. Ideal for light touring, commuting, sportive or gravel builds.

Disc brake compatible, variable size sports geometry and now with extra  clearance for up to 38C tyres (or 32C with narrow mudguards) give a sprightly performing steel frame that can be built-up and used in a multitude of guises.

Features

  • Custom bi-oval down tube reduces lateral flex in the bottom bracket area for better power transmission.
  • Sloping top tube design allows for more seat post flex and thus more comfort.
  • Sports geometry, giving a versatile yet nimble performance.
  • High specification Reynolds 725 steel oval and b-oval double butted tubing delivers a great combination of lightweight, performance, durability and comfort.

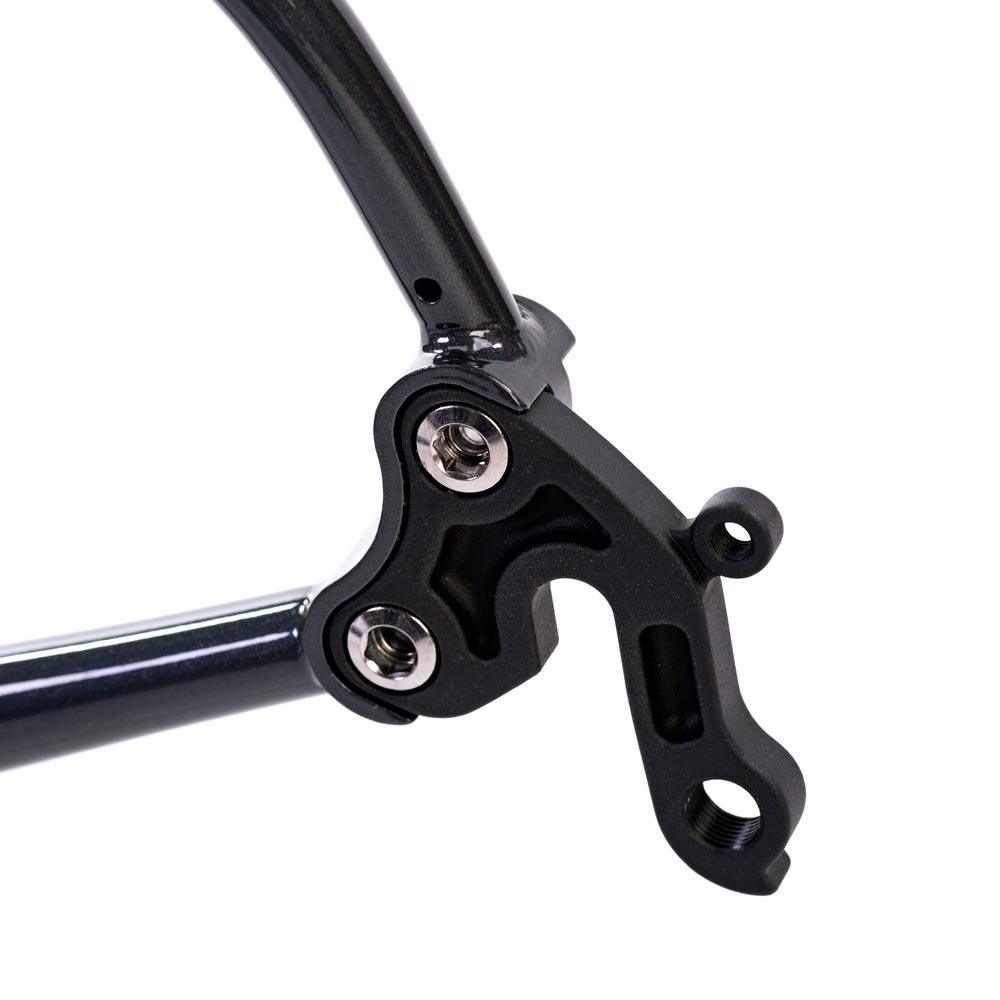

  • Switchable alloy dropouts- allows geared or single speed set ups. Also allows 130 or 135mm spacing (or 142 Thru Axle if required.)
  • Lightweight, butted Cr-mo D section straight fork blades for disc brakes.

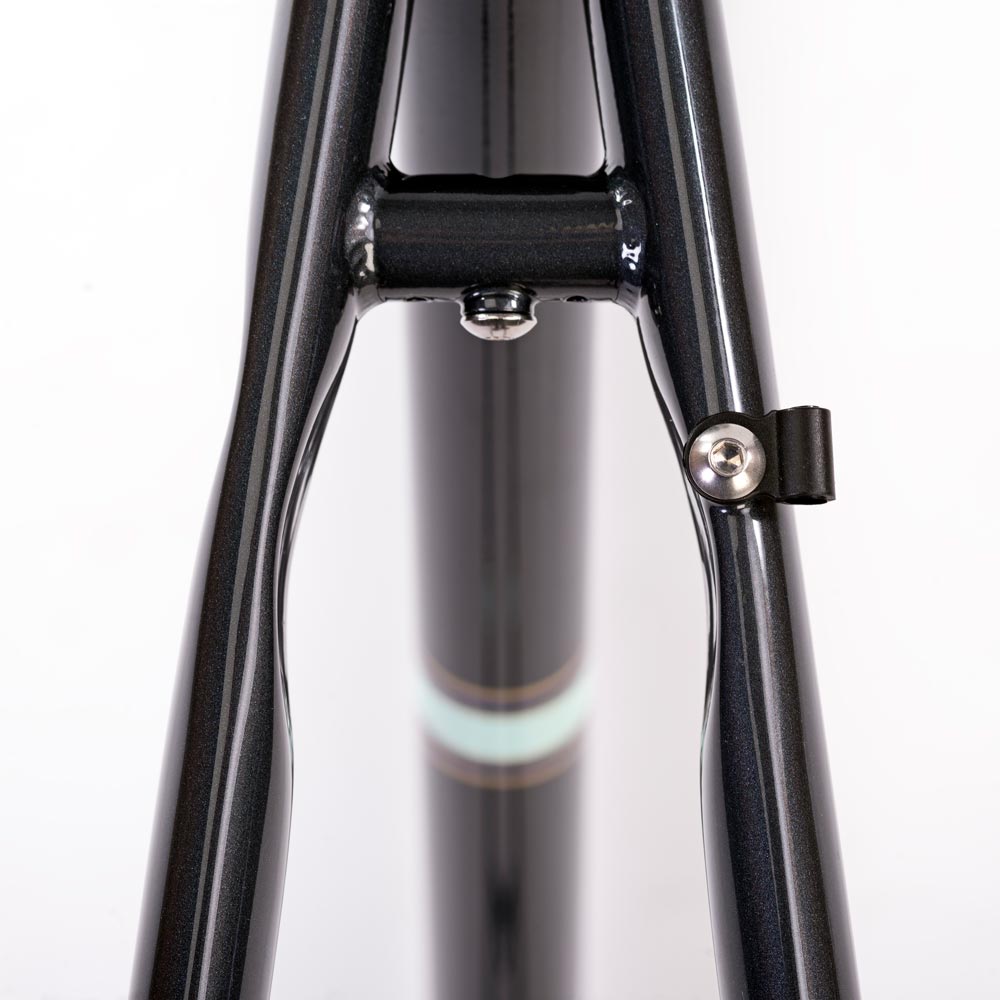

  • Multiple mudguard mount bosses
  • 4 point fixing threaded M5 rack mounts on rear dropouts and seat stays.
  • Corrosion resistant black ED base coat.

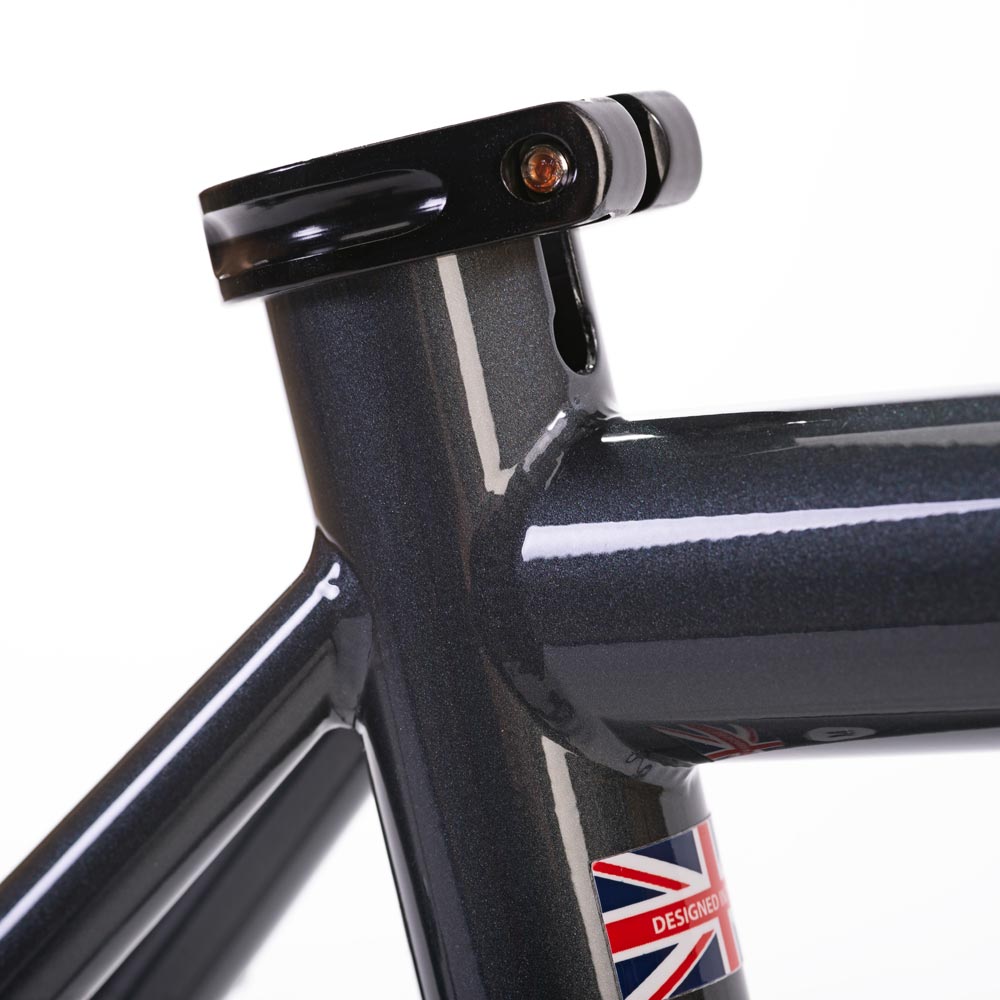

  • Forward facing seat post slit, with LB single bolt seat alloy clamp included.

Specifications

  • Fork Lightweight D section Cr-mo straight blade forks.
  • Headset Compatibility 1 1/8" a-head
  • Seatpost 27.2mm
  • Seat Clamp 28.6mm
  • Front Derailleur Band on 28.6mm
  • BB Shell English thread 68mm
  • Rear spacing Switchable 130/135mm
  • Tyre Clearance Up to 700x38C (or 32C with mudguards)

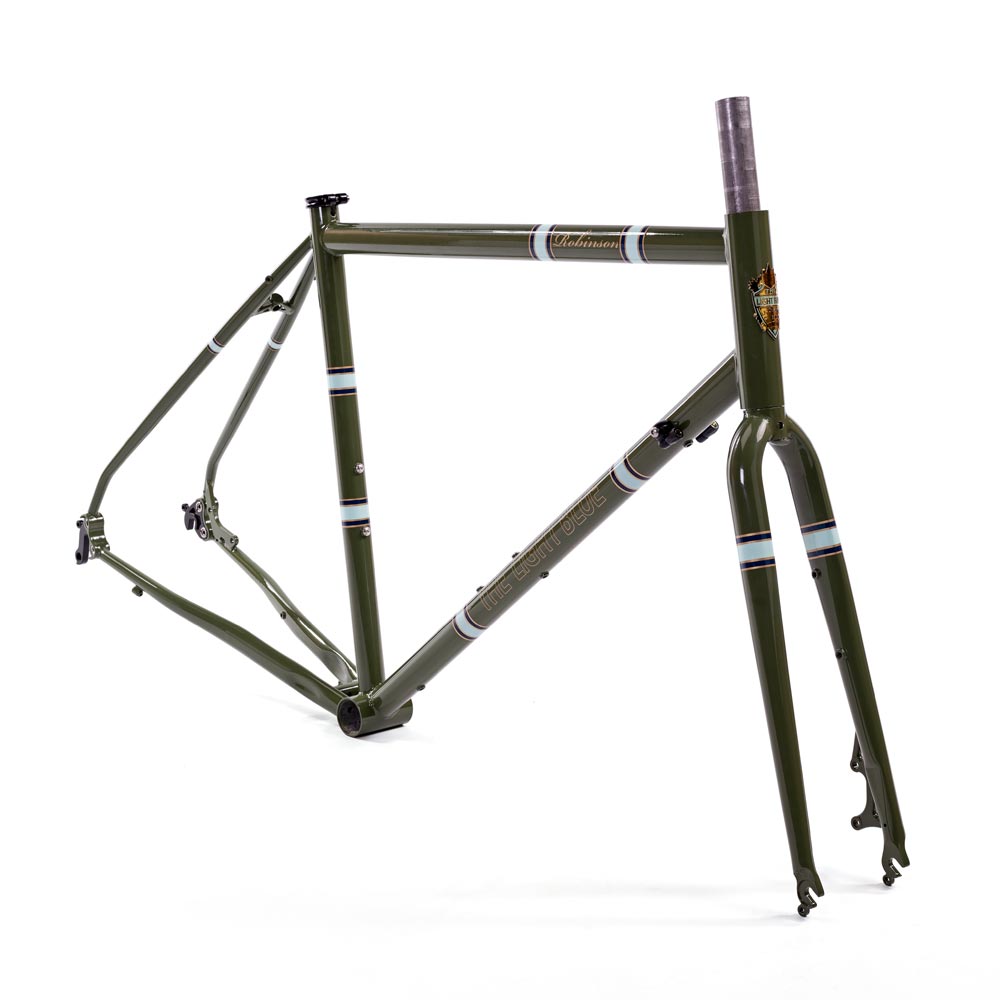

  • Colour Olive Green or Anthracite
  • Frame Weight 1800g (4lb) M (frame only)
  • Fork Weight 1050g (2.3lb) Uncut

All weights are approximate and are offered in good faith.

The Light Blue Robinson V2 Frameset
The Light Blue Robinson V2 Frameset
Click image to enlarge
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
Robinson v2 Frameset, Sports Disc R725, tig welded w switchable drops inc. 11 /8"forkOlive GreenSm/Md FMLBR22G£649.99Each
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
