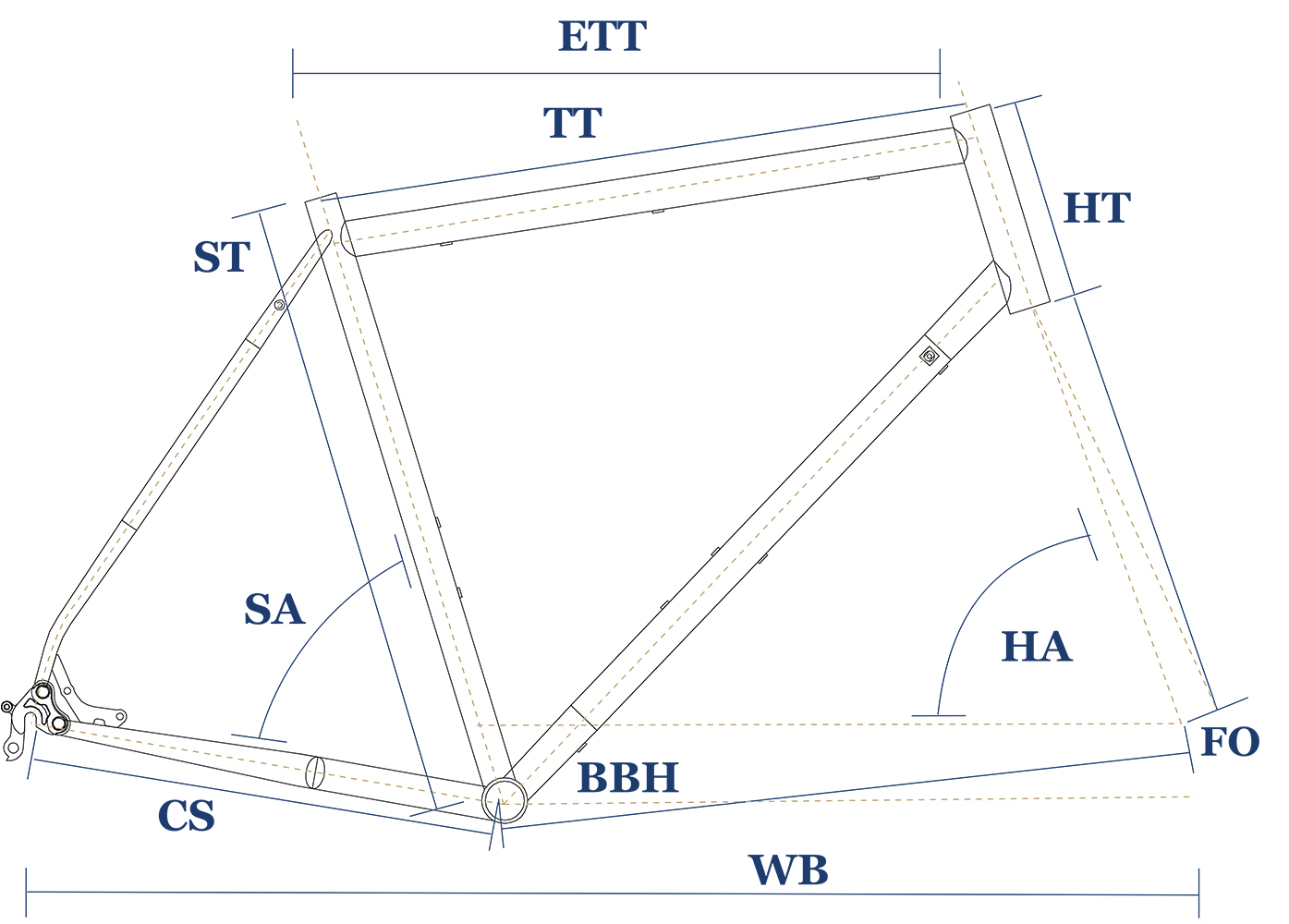

| Small | Small/Medium | Medium | Medium/Large | Large | ||
| Stack | 543 | 566 | 591 | 611 | 633 | |
| Reach | 377 | 382 | 394 | 412 | 416 | |
| Horizontal Top Tube (ETT) | 533 | 550 | 575 | 590 | 610 | |
| Seat Tube (ST) | 460 | 490 | 520 | 550 | 580 | |
| Actual Top Tube C2C (TT) | 515 | 530 | 555 | 569 | 589 | |
| Chainstay (CS) | 425 | 425 | 425 | 425 | 425 | |
| Bottom Bracket Height/Drop (BBH) | -72 | -72 | -72 | -72 | -72 | |
| Seat angle (SA) | 74° | 73.5° | 73° | 73° | 73° | |
| Headtube Angle (HA) | 70.5° | 71.5° | 72.5° | 73° | 73.5° | |
| Headtube (HT) | 120 | 140 | 160 | 180 | 200 | |
| Max Tyre (without mudguards) | 38c | 38c | 38c | 38c | 38c | |
| Max Tyre (with mudguards) | 32c | 32c | 32c | 32c | 32c | |
