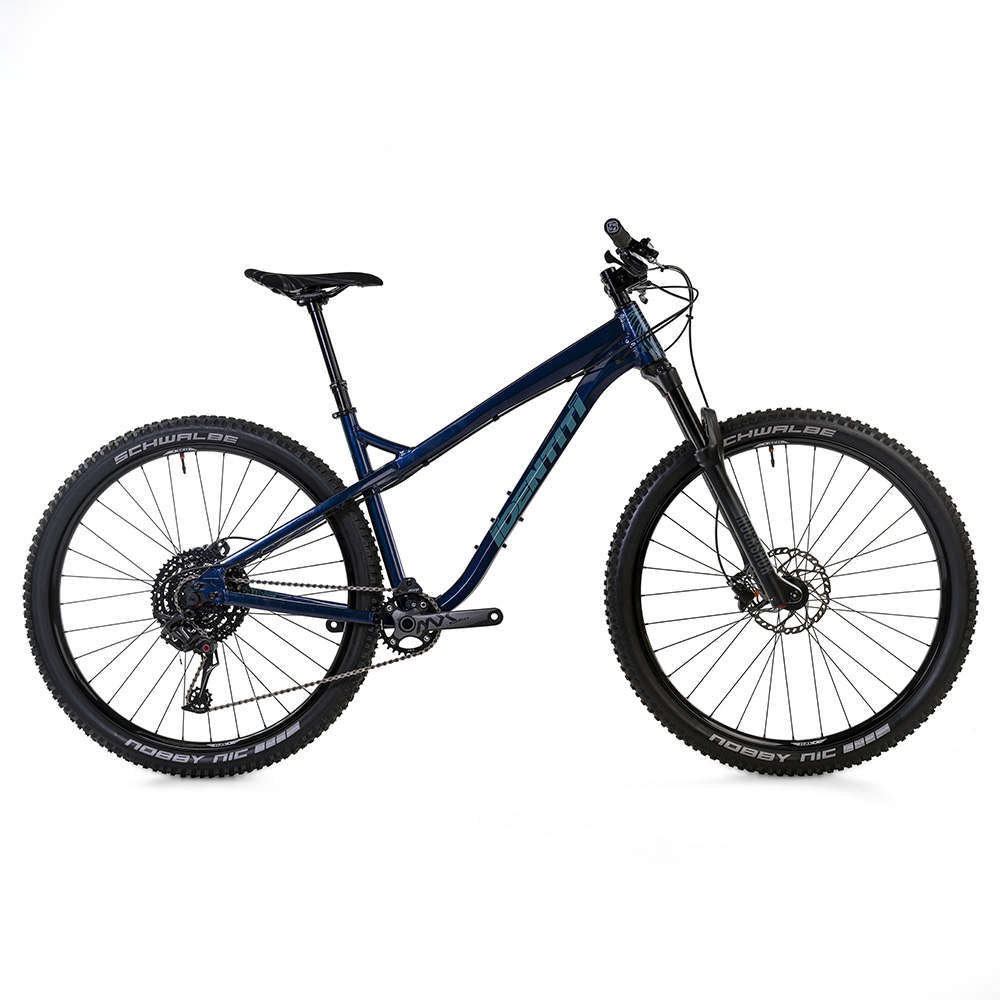

AKA BOX 9 Speed Navy Teal 29

The AKA is the peak of what a hardcore hardtail is. A pedal up, pedal along, blitz down kind of affair with proven geometry. Take it to the flow trails at your local trail centre, go off-piste, or take it to your local BMX or Pump track – it’ll put a smile on your face.

You’d think making a hardtail was as simple as picking a few decent geometry numbers, throw it together and away you go… if only it was that easy. In fact, hardtails get steeper at sag, so we put a package together that ticks all the boxes with that in mind. A slack head angle, and comfortable seat tube angle, and a low bottom bracket put you ‘in’ the bike and in the thick of it. The AKA is the culmination of years of design experience, tweaking, and adapting the design until we were happy.

This is a performance-focused entry-level build for the Identiti AKA, with a Box Prime 9 Drivetrain, Shimano Brakes, 140mm Rockshox Gold 35 fork, Halo Ridgeline 2 and a Gusset finishing kit. This is our entry-level spec with performance in mind.

Frame Features

• 6000 Series alloy tube set
• Geometry designed around sag
• 3 sizes; small, medium and large
• Available in various colour options
• 5” or 29” wheel compatible
• Max tyre size 2.6” (65mm measured on 28 internal rim)
• Triple bottle cage mount inside the front triangle for adjustable bottle placement or extra storage for longer adventures and 1 bottle cage mount under the downtube
• Custom designed ADS sliding drop outs with built in hidden tensioner enabling single speed use and wheelbase adjustment
• 1x Only cable routing
• 12 x 148 boost drop outs
• Threaded bottom bracket with ISCG 05 tabs
• Stealth dropper post routing

Specifications

• Fork Rockshox Recon Gold RL 29" 120 42mm offset
• Headset Gusset S2 ZS44/ZS56
• Handlebar Gusset S2 31.8 20mm rise
• Stem Gusset Magnum 31.8 50mm length
• Grips Gusset Singlefile lock on Black
• Saddle Gusset R series Black Jack
• Seatpost KS e30i 30.9, 150mm
• Chain Guide MRP 1x CS
• Rear Derailleur Box Two Prime 9 X-Wide
• Gear Levers Box Two prime 9, Multi shift
• Chain Box Two Prime 9 Nickel
• Crankset Sunrace FCMX00 CRANK 175mm, 32t
• Cassette Box Two Prime 9 ,11-50T 9 Speed
• Bottom Bracket Sunrace
• Brakes Shimano MT 201 2Pot, 180/180 Rotors
• Wheels Halo Ridgeline 2 29” , 110/ 148 Shimano HG
• Tyres Schwalbe Nobby Nic Performance, 29” x 2.4”
• Colour Navy Teal
