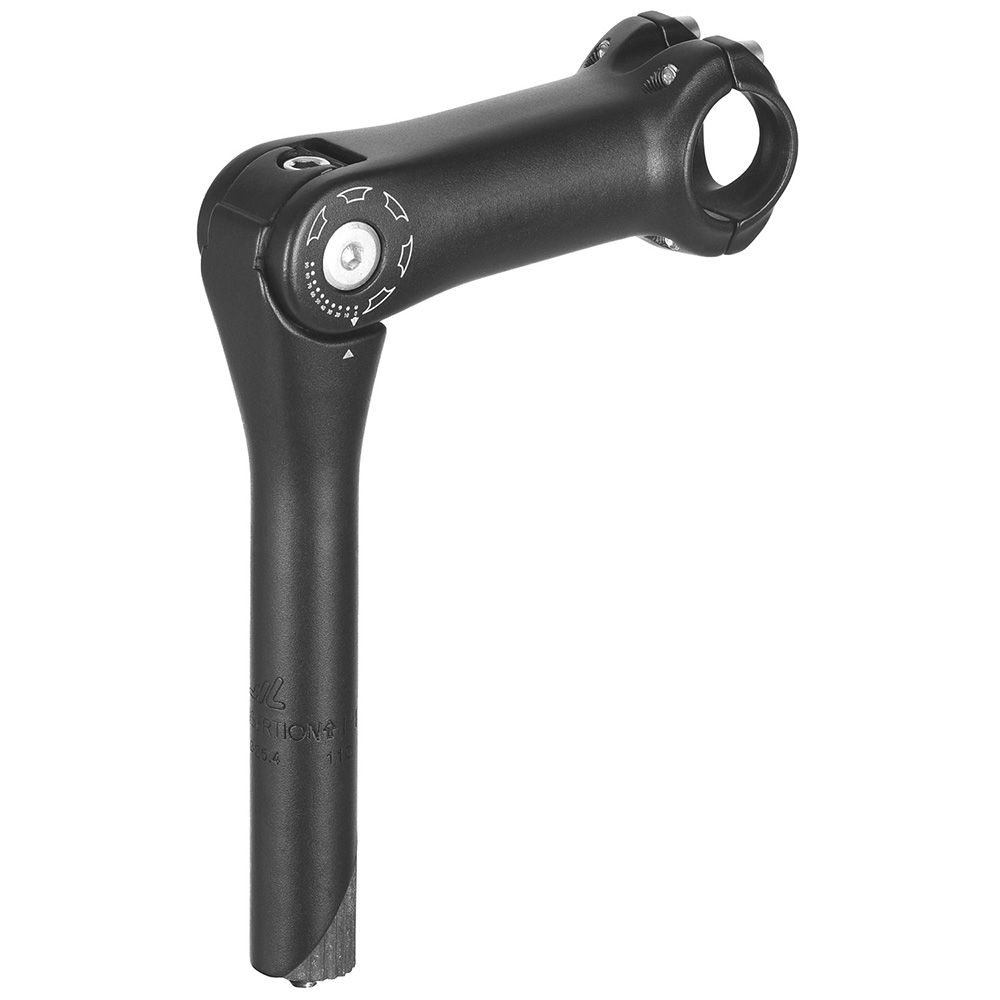

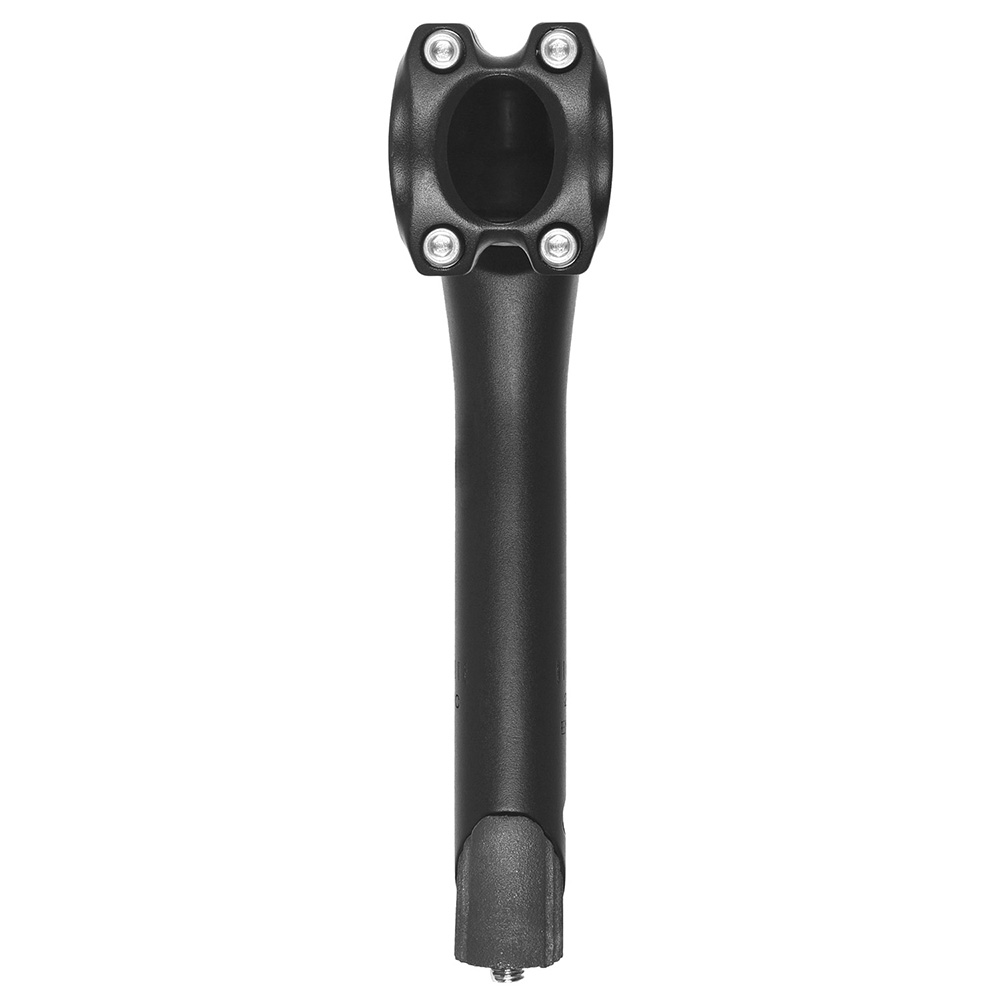

Adjustable Quill Stem C2.2

Angle adjustable Quill type handlebar stem for City/Leisure/Trekking.

Customisable angle enables comfortable handlebar positioning.

Allows easy adjustment of the forward extension angle section of the stem between 0 and 90 degrees. This adjustability feature effectively alters the height and reach of the handlebars.

The Quill insert system also enables an effective telescopic height adjustment of 50mm, in addition to the angle adjustments.

Quill system shaft inserts into 1 1/8” threaded headset type forks and is suitable for use on modern City/Leisure and Trekking bikes, including E-bikes.

Aluminium material with steel bolts.

Available in 2 lengths of forward extension: 90 or 110mm.

Specifications

• Material: Aluminium
• Adjustable: 0-90 degree angles
• Fork type/size: 1 1/8" with threaded type headset
• Quill shaft diameter: 25.4mm
• Quill height adjust: 50mm
• Handlebar clamp: 31.8mm
• Weight: 540g (90mm) or 575g (110mm)
• Colour: Black sandblast finish

Ahead (threadless fork) type 1 1/8” stem variants (M-wave C2.1) are also available.
