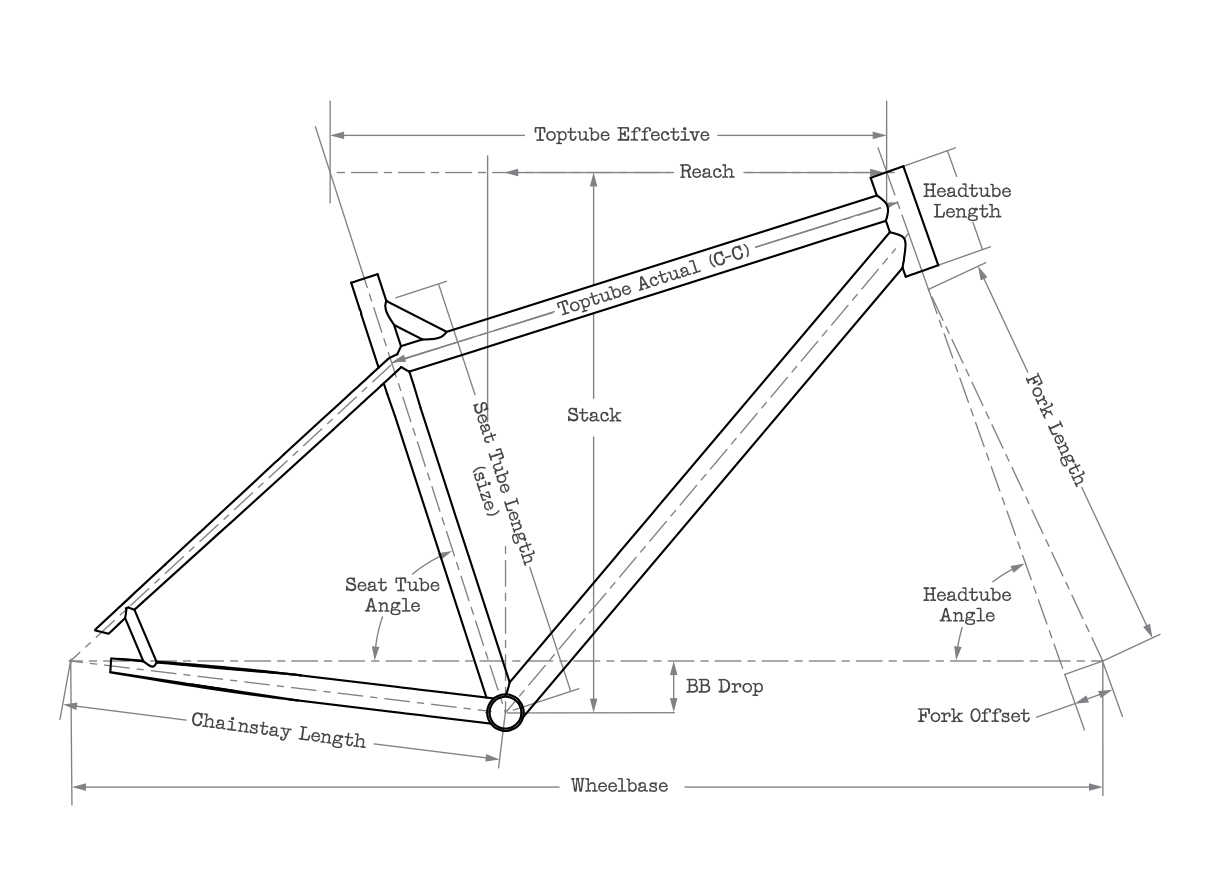

| XS | Small | Medium | Large | XL | ||
| Horizontal Top Tube (ETT) | 560 | 585 | 610 | 635 | 660 | |
| Seat Tube (ST) | 330 | 368 | 419 | 470 | 521 | |
| Chainstay (CS) | 423 | 423 | 423 | 423 | 423 | |
| Bottom Bracket Height/Drop (BBH) | -55 | -55 | -55 | -55 | -55 | |
| Seat angle (SA) | 73° | 73° | 73° | 73° | 73° | |
| Headtube Angle (HA) | 69° | 69° | 69° | 69° | 69° | |
| Headtube (HT) | 100 | 100 | 100 | 110 | 120 | |
| Fork Offset (FO) | 45 | 45 | 45 | 45 | 45 | |
| Wheelbase (WB) | 1053 | 1078 | 1103 | 1129 | 1155 | |
