49cm | 53cm | 56cm | 59cm | 62cm | |

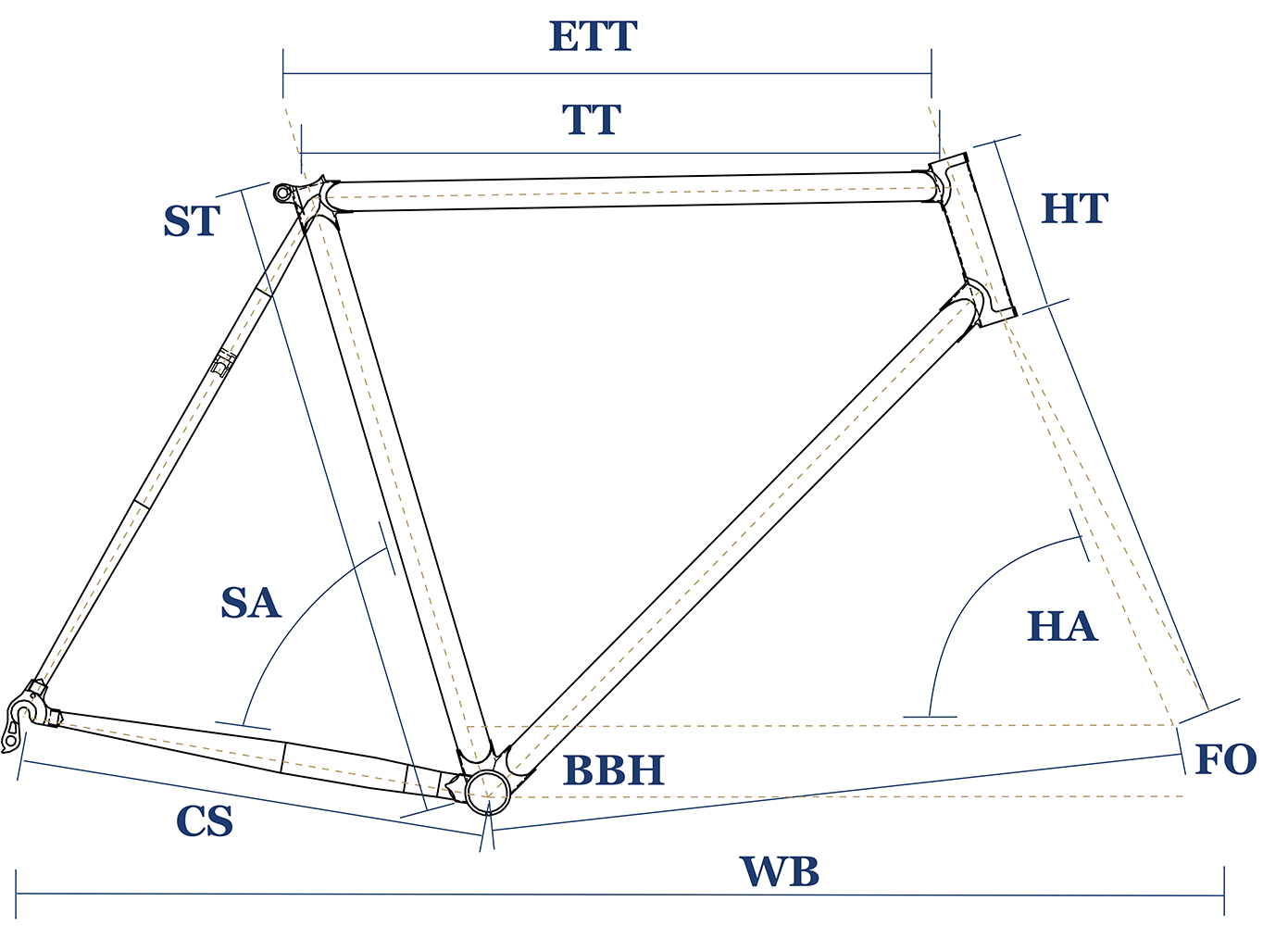

| Horizontal Top Tube (ETT) |
530
|
549
|
568
|
572
|
585
|
| Seat Tube (ST) |
490
|
530
|
560
|
590
|
620
|
| Actual Top Tube C2C (TT) |
524
|
544
|
564
|
575
|
585
|
| Chainstay (CS) |
413
|
413
|
413
|
413
|
413
|
| Bottom Bracket Height/Drop (BBH) |
-70
|
-70
|
-70
|
-70
|
-70
|
| Seat angle (SA) |
74.5°
|
74°
|
73.5°
|
73.5°
|
73.5°
|
| Headtube Angle (HA) |
71.5°
|
72°
|
72.5°
|
73°
|
72.5°
|
| Headtube (HT) |
105
|
130
|
150
|
175
|
200
|
| Fork Offset (FO) |
50
|
50
|
45
|
45
|
45
|
| Wheelbase (WB) |
996
|
1001
|
1010
|
1013
|
1029
|
| Max Tyre (without mudguards) |
28c
|
28c
|
28c
|
28c
|
28c
|
NB: Measurements in mm unless otherwise stated.
