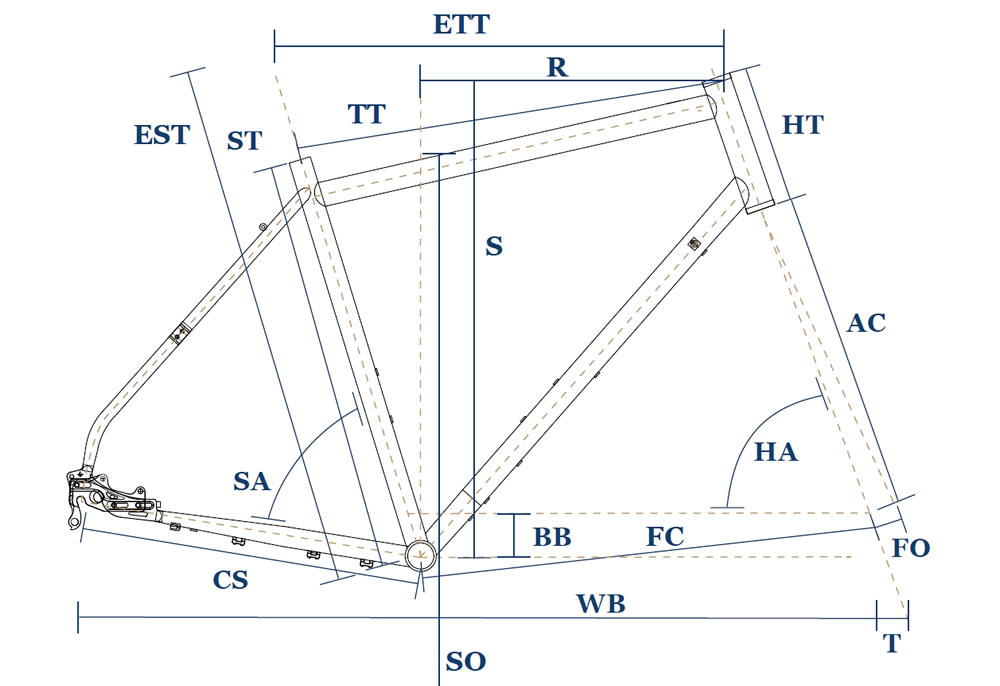

Small | Small/Medium | Medium | Medium/Large | Large | |
| Stack |
582
|
603
|
615
|
626
|
647
|
| Reach |
368
|
376
|
388
|
400
|
408
|
| Horizontal Top Tube (ETT) |
541
|
555
|
570
|
585
|
600
|
| Seat Tube (ST) |
500
|
520
|
535
|
550
|
570
|
| Effective Seat Tube (EST) |
607
|
629
|
641
|
653
|
675
|
| Actual Top Tube C2C (TT) |
521
|
534
|
548
|
564
|
575
|
| Chainstay (CS) |
445
|
445
|
445
|
445
|
445
|
| Bottom Bracket Drop (BB) |
72
|
72
|
72
|
72
|
72
|
| Seat angle (SA) |
73.5°
|
73.5°
|
73.5°
|
73.5°
|
73.5°
|
| Headtube (HT) |
150
|
170
|
180
|
190
|
210
|
| Headtube Angle (HA) |
70°
|
70.5°
|
71°
|
71.5°
|
72°
|
| Fork A-C (AC) |
403
|
403
|
403
|
403
|
403
|
| Fork Offset (FO) |
50
|
50
|
50
|
50
|
50
|
| Wheelbase (WB) |
1047
|
1057
|
1067
|
1077
|
1075
|
| Front Centre (FC) |
612
|
622
|
632
|
642
|
640
|
| Trail (T) |
73
|
70
|
67
|
63
|
60
|
| Standover (SO) |
759
|
779
|
793
|
804
|
823
|
| Max Tyre (without mudguards) |
45c
|
45c
|
45c
|
45c
|
45c
|
| Max Tyre (with mudguards) |
35c
|
35c
|
35c
|
35c
|
35c
|
NB: Measurements in mm unless otherwise stated.
