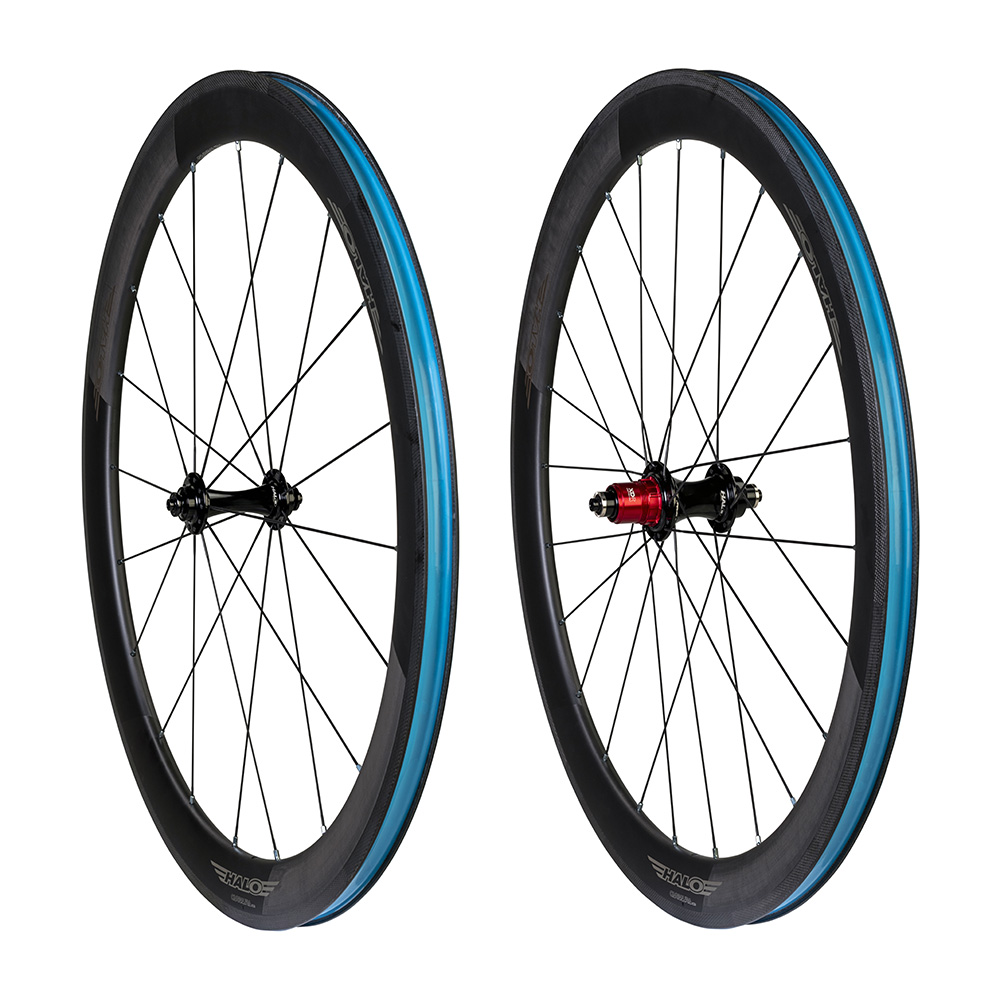

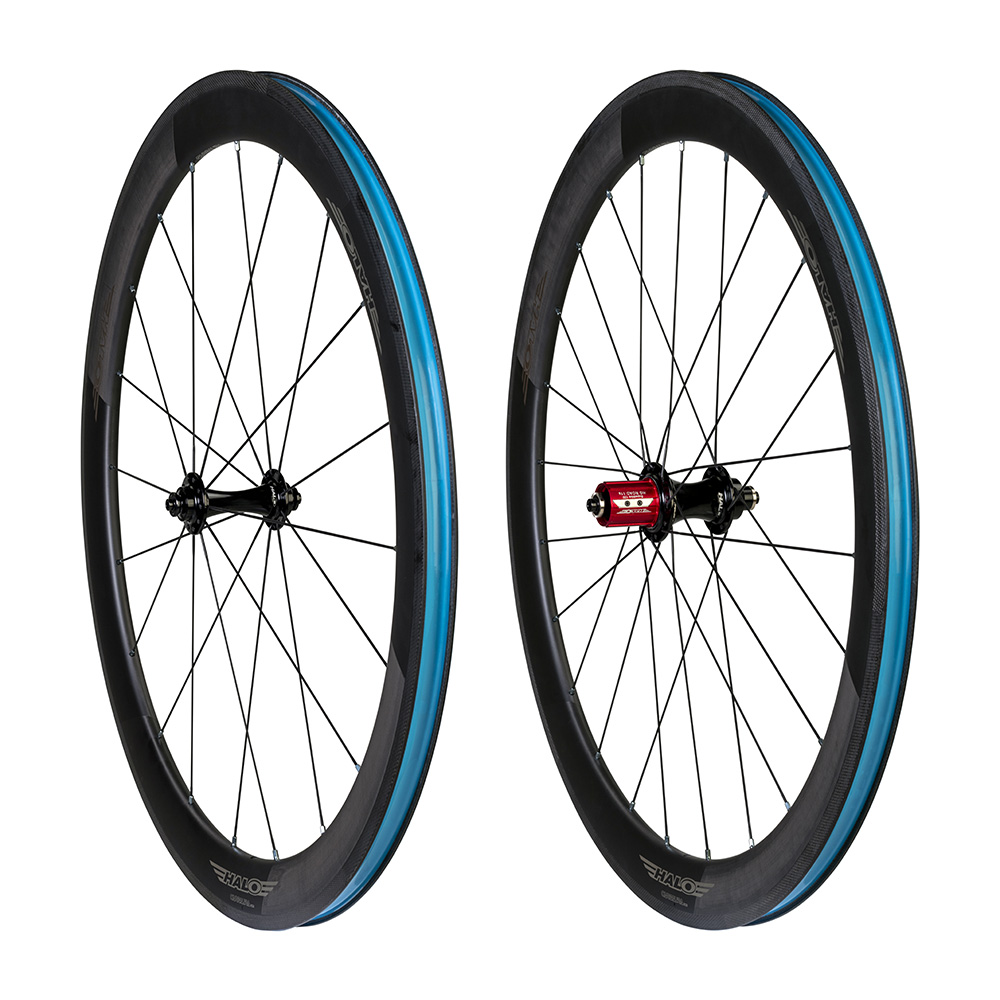

Carbaura RC50 RS2 Supadrive Wheelset - Black Hubs

Save the Rim Brake

We have redesigned our Carbaura RC50 to meet the highest performance standards while exuding a sleek aesthetic. With a fresh finish and Chrome decals, these wheels not only perform exceptionally well, but look the part doing so.

Built with an optimised aerodynamic profile tested through Computational Fluid Dynamics (CFD) and constructed with a carbon fibre chassis, the Carbaura RC wheelsets prioritise low weight, linear compliance, and lateral stiffness.

Featuring a proven 19mm internal and 25mm external rim width, these wheelsets accommodate both traditional and tubeless tyres, suitable for tyre widths ranging from 25c to 35c, providing enhanced comfort and grip.

To enhance braking performance and rim durability on challenging alpine descents, the braking surface is finished in a 1.5k weave, which dissipates heat more effectively throughout the carbon structure, significantly reducing temperature build-up.

Handcrafted with lightweight bladed aero spokes to minimize resistance and widely spaced hub flanges, the Carbaura RC wheelsets are engineered to reduce lateral flex and maximize power transfer. The rear wheels feature a 16/8e lacing pattern to balance spoke tensions and withstand torque forces, while the front wheel employs radial lacing to reduce weight and drag.

Our RS2 Front and RS2 Supadrive hubs come with fully sealed bearings for year-round durability. With 120 points of engagement, these hubs ensure you never miss a pedal stroke, whether accelerating out of a corner or from a standing start, making them among the most responsive hubs on the market.

Each wheelset is supplied with SwissStop Black Prince brake pads.

SAFETY NOTICE:

• Use only genuine SwissStop Black Prince brake pads with these wheels.
• The recommended maximum rider weight limit is 100kg. While weights beyond 100kg may still be viable, they increase stress on the components, and regular checks by an experienced mechanic are recommended. Warranty issues will be assessed by our in-house team on a case-by-case basis.

Specifications

• Spokes Halo Black Aero Racing Stainless spokes
• Nipples Halo grey alloy nipples
• Rim Depth 50mm
• Internal Rim Width 19mm
• External Rim Width 25mm
• Front Hub Spacing 100mm
• Rear Hub Spacing 130mm
• Drillings 20H Front, 24H Rear
• Freehub Shimano HG, Sram XD-R and Campagnolo versions
• Freehub Body Alloy
• Drive System Supadrive
• Spoke lengths 253mm front. 256mm/253mm Rear
• Spoke pattern Radial Front, 16/8e Rear
• Recommended Tyre size 25-35c
• Tubeless Tubeless ready
• Valve Drilling Presta
• Colour Raw UD/1.5k Carbon with Chrome decal
