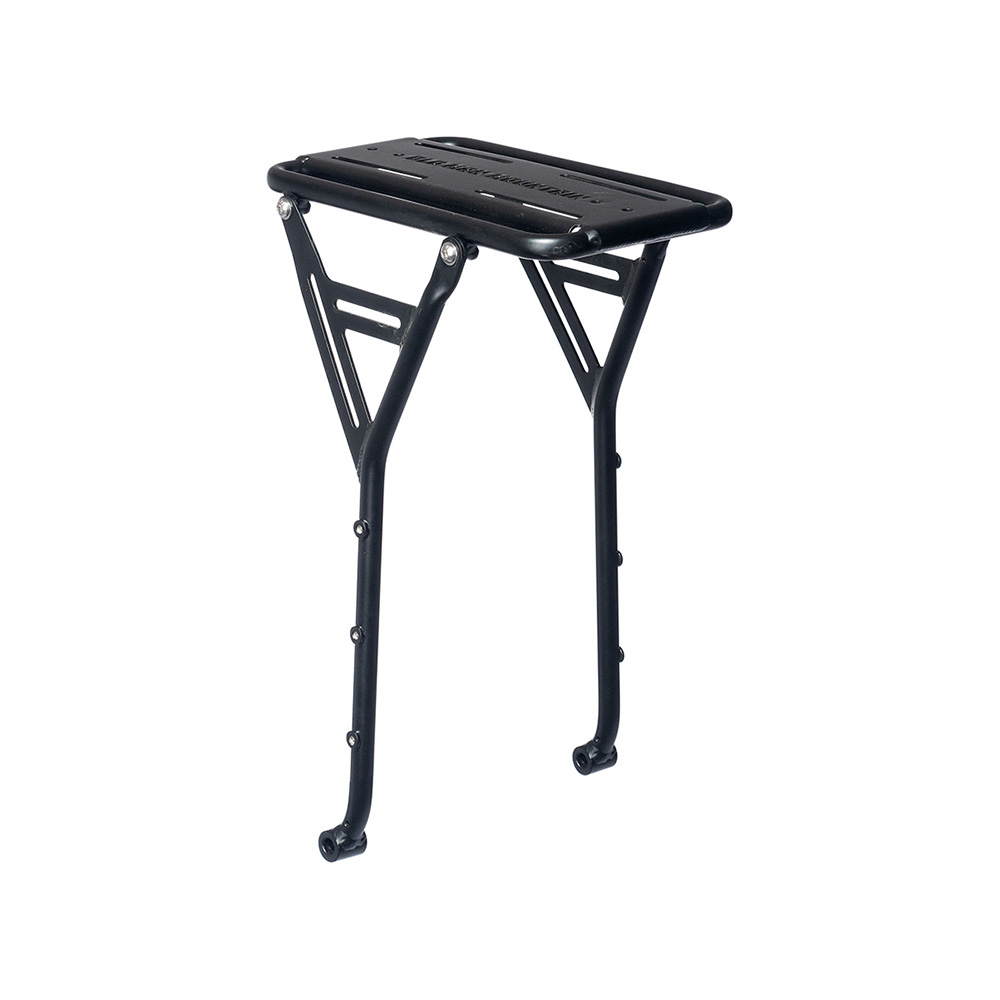

Elkhorn Rack - Tall

The Elkhorn is extremely versatile, It comes front or rear ready for eyelet mounting, and with our Fit Kits, the Elkhorn mounts on any bike or fork with ease.

Specifications

• The Elkhorn comes in two sizes; Short and Tall.
• The Short is designed for 27.5 and 700c wheels. Fits tyres up to 27.5 x 2.8″ or 700c x 50mm.
• The Tall is designed for maximum mud clearance and bikes with 29″ tyres. Fits tyres up to 29 x 3.25″.

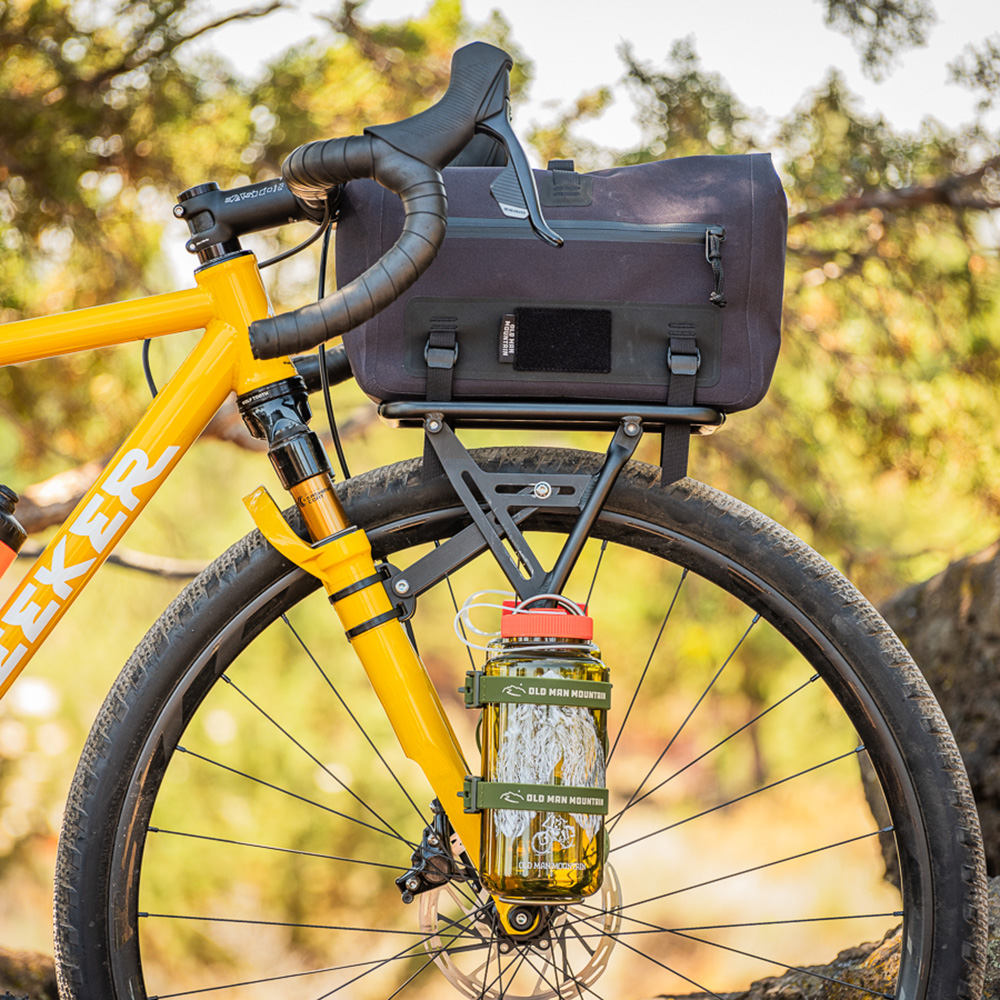

• Front or rear mountable.
• Made from 6061 aluminium the racks are lightweight, stiff, and strong.
• The rack is made from 1/2″ (13mm) diameter tubing.
• The deck measures 6.3″ x 10.5″ (161 mm x 266 mm) The deck includes slots for easily lashing gear in place holes for mounting a light, and perimeter.

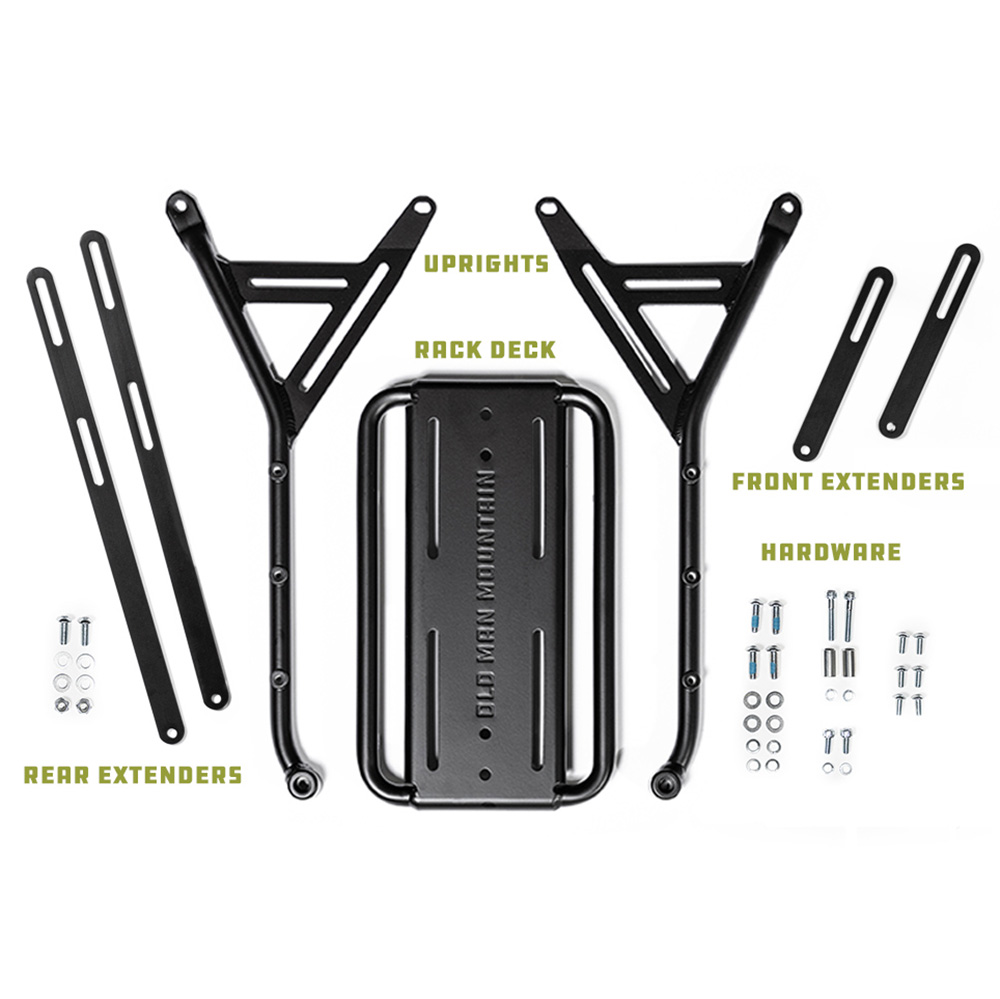

• The Elkhorn comes standard, eyelet mount ready with optional fit kits available for thru-axle or QR mounting.
• The Elkhorn has a load capacity of 25 lbs/11.34kg.
• Rack weight (Short): 623 grams with 6″ extenders.
• Rack weight (Tall): 652 grams with 6″ extenders.
• Powder coated a sleek and refined shade of black.
• If you want more precise fit information, the height from the mounting point to the deck is 371mm on the Short and 420mm on the tall. Be sure to leave room for debris and mud clearance.
• Made in Taiwan.
• Lifetime warranty
