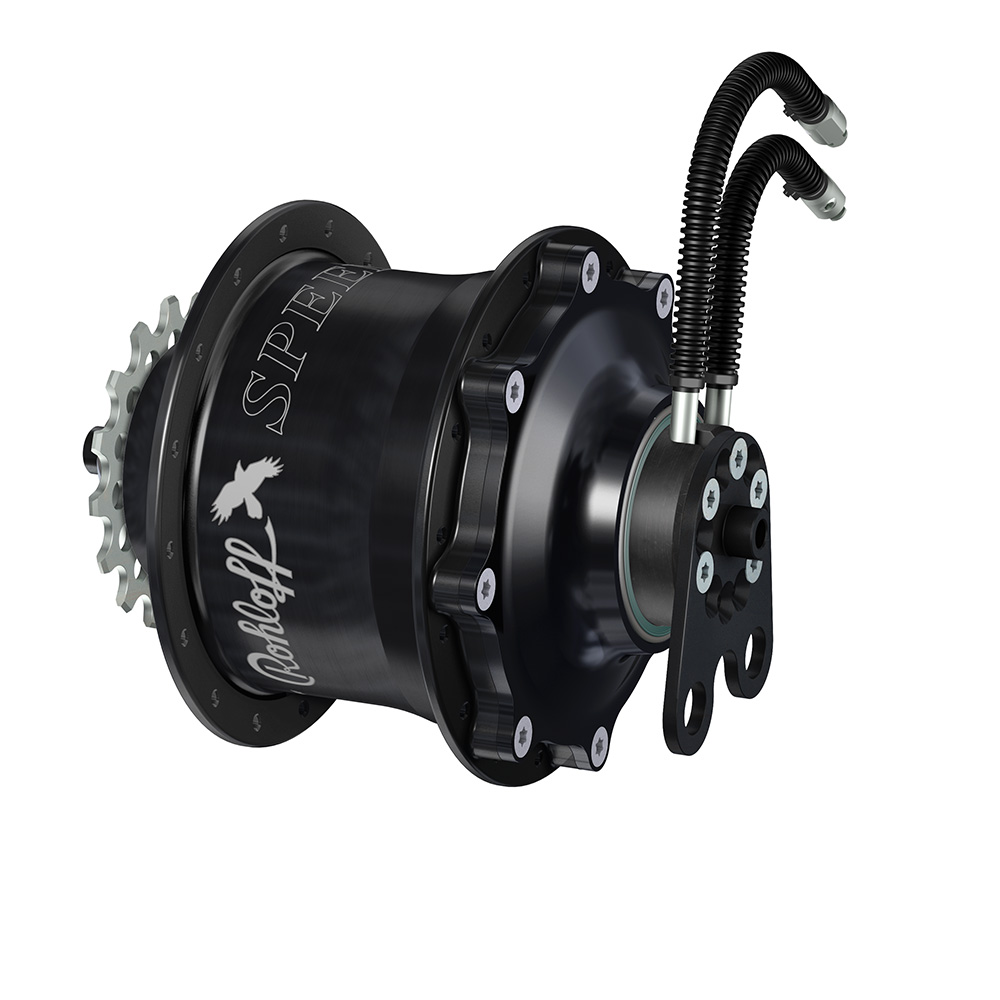

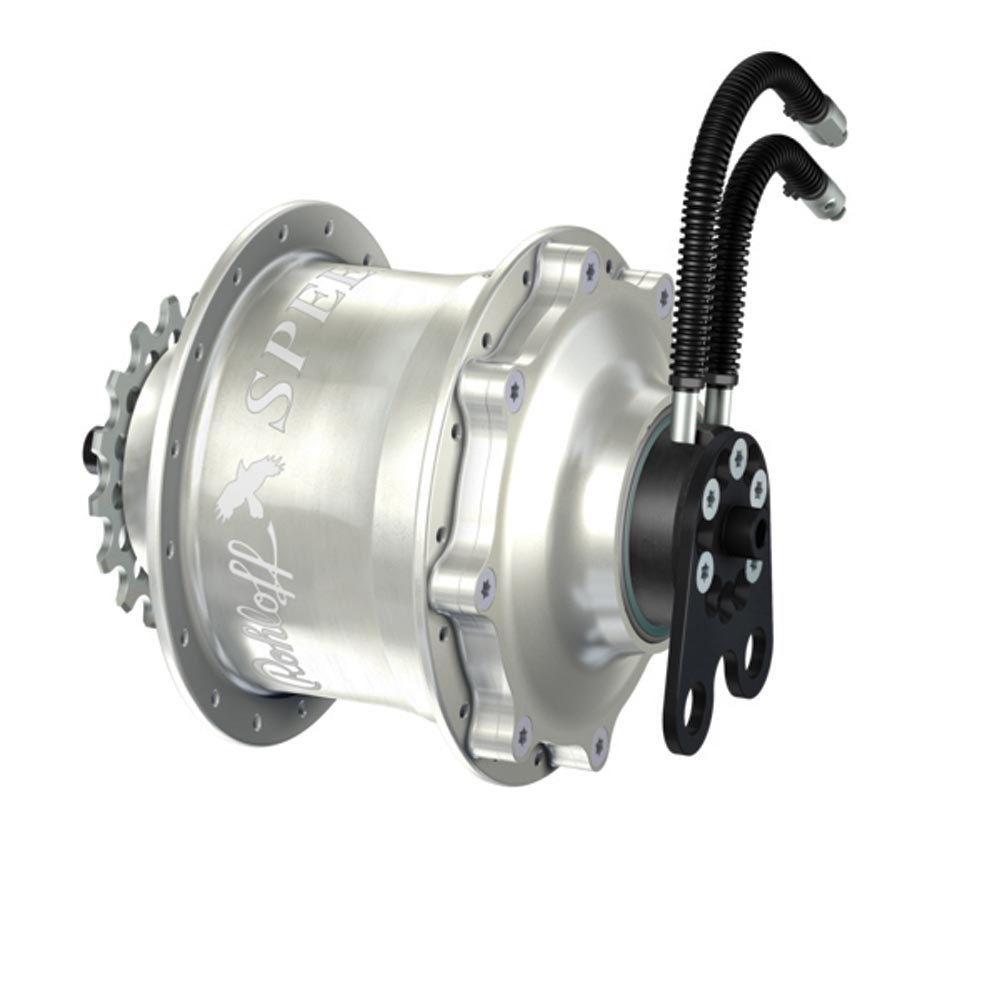

Speedhub 500/14 CC QR

14 Speed Internal gear hub with Hollow Quick release type axle.

• 32H.
• 135mm spaced.
• Boxed kit includes cables, Torque arm and Chain Tensioner.
• 526% range of gears (equivalent to typical 27Speed MTB derailleur system)
• 14 Individual gears (no wasted overlaps or duplicates)
• Evenly spaced 13.6% gear increments. (no sudden big jumps)
• Ability to shift whilst stationary or under load.
• Super efficient sealed Oil bath mechanism (95-99%)
• Adjustment and maintenance free over thousands of miles.
• Gear positions are indexed inside hub, thus negating critical cable tension adjustments.
• Precision German engineered (in use Worldwide in the hardest of races and regions.)
• Super reliable, can be used for virtually all disciplines, including Tandem and Downhill.
• Lightweight - approx 1.7Kg, but replaces a lot of conventional gear components...
• includes 16t sprocket

The model codes (CC/TS) refer to the axle type. There are two different axle types available:

• CC- Cross Country. Hollow axle for use with a quick release lever (quick release axle).
• TS-Threaded spindle axle. Threaded axle with axle nuts m10

The following part model codes refer to addition hub specifications:

• EX- External gear mech. With external gear mech.
• DB- Disc Brake. With a disc brake hub cap and external gear mech EX
• OEM- Official equipped manufacturer.
• With CC OEM or TS OEM axle plate according axle type on for frame with Rohloff OEM dropouts.
• OEM2- With CC OEM2 or TS OEM axleplate according axle type. For frames with international standard (IS1999) disc brake mounts.
• PM. Post mount version. Axleplate available for both CC and A12 axle types. Anchors the SPEEDHUB torque via a ‘PM Bone’ to frames direct post mount brake caliper mount.
• T- Tandem Version.
• XL- Xtra large. For frames with a 170/188mm spacing. Only available as a disc brake version finished in anodized black with 32H.
• XXL- Xtra Xtra Large. For frames with a 190/197mm spacing. Only available as a disc brake version finished in anodized black with 32 spoke holes.

World class hubs - Read about Mark Beaumonts world record breaking trip around the world using Rohloff.

36H versions of all the Speedhubs are available to order, please contact our sales desk
