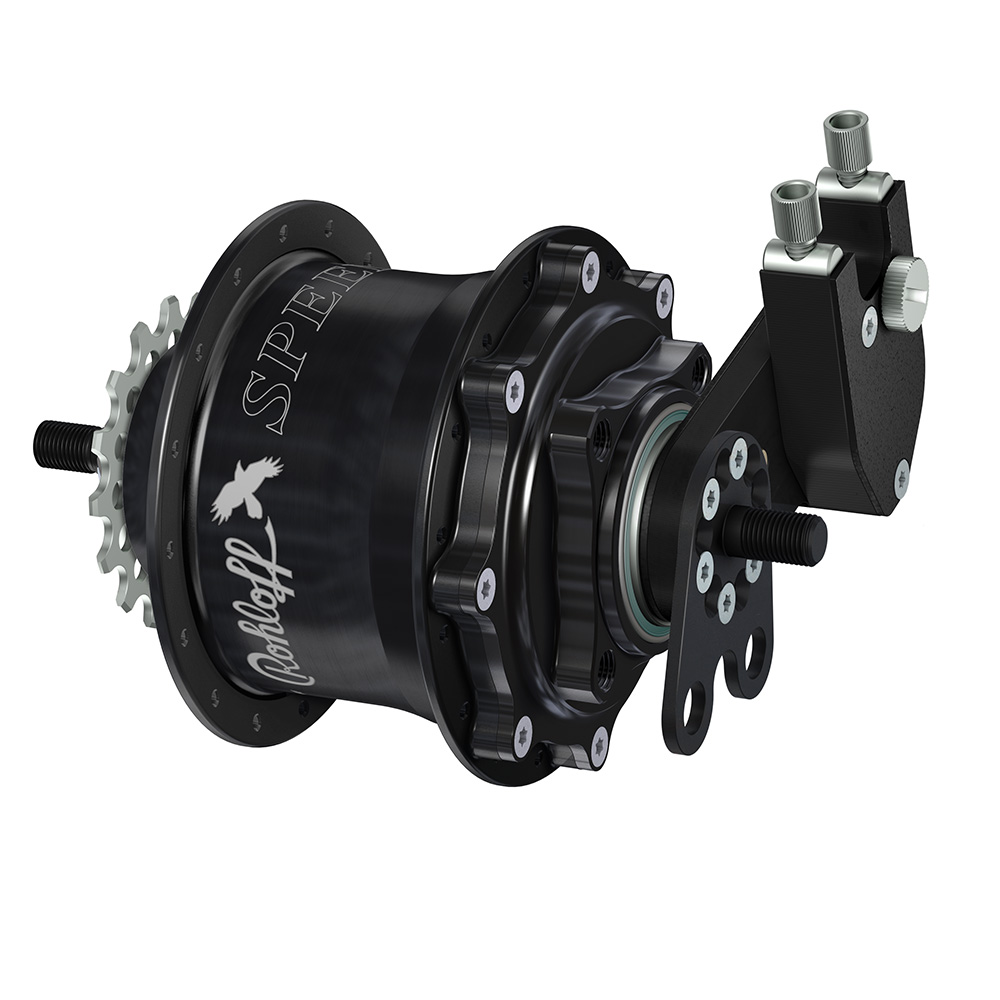

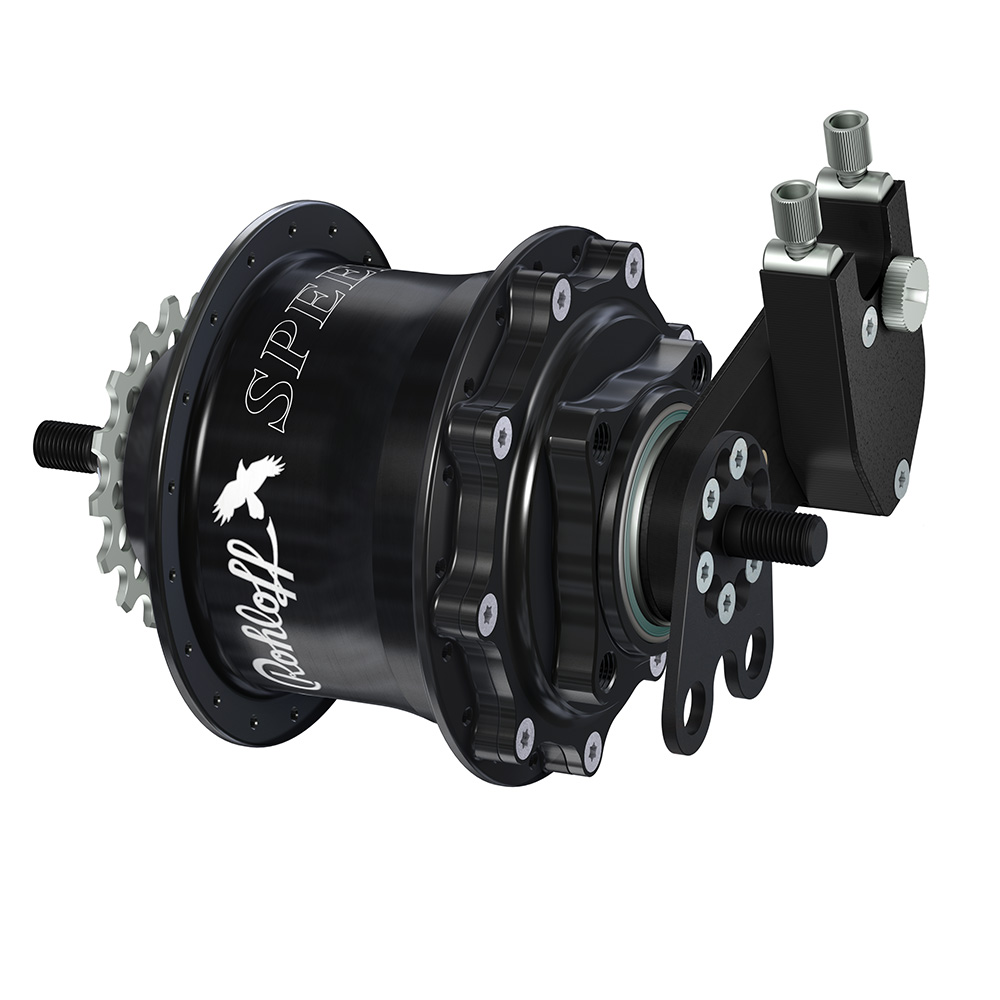

Disc Speedhub 500/14 TS Solid Axle DB

14 Speed Internal gear hub with Solid nutted type axle.

• 32 or 36H. 135mm spaced.
• Boxed kit includes cables, Torque arm.
• (Note: Solid axle version excludes Chain Tensioner.)
• Special 4 bolt Disc fitting.
• 526% range of gears (equivalent to typical 27Speed MTB derailleur system)
• 14 Individual gears (no wasted overlaps or duplicates)
• Evenly spaced 13.6% gear increments. (no sudden big jumps)
• Ability to shift whilst stationary or under load.
• Super efficient sealed Oil bath mechanism (95-99%)
• Adjustment and maintenance free over thousands of miles.
• Gear positions are indexed inside hub, thus negating critical cable tension adjustments.
• Precision German engineered (in use Worldwide in the hardest of races and regions.)
• Super reliable, can be used for virtually all disciplines, including Tandem and Downhill.
• Lightweight - approx 1.7Kg, but replaces a lot of conventional gear components...
• Includes 16t sprocket

The model codes (CC/TS) refer to the axle type. There are two different axle types available:

• CC- Cross Country. Hollow axle for use with a quick release lever (quick release axle).
• TS-Threaded spindle axle. Threaded axle with axle nuts m10

The following part model codes refer to addition hub specifications:

• EX- External gear mech. With external gear mech.
• DB- Disc Brake. With a disc brake hub cap and external gear mech EX
• OEM- Official equipped manufacturer.
• With CC OEM or TS OEM axle plate according axle type on for frame with Rohloff OEM dropouts.
• OEM2- With CC OEM2 or TS OEM axleplate according axle type. For frames with international standard (IS1999) disc brake mounts.
• PM. Post mount version. Axleplate available for both CC and A12 axle types. Anchors the SPEEDHUB torque via a ‘PM Bone’ to frames direct post mount brake caliper mount.
• T- Tandem Version.
• XL- Xtra large. For frames with a 170/188mm spacing. Only available as a disc brake version finished in anodized black with 32H.
• XXL- Xtra Xtra Large. For frames with a 190/197mm spacing. Only available as a disc brake version finished in anodized black with 32 spoke holes.

World class hubs - Read about Mark Beaumonts world record breaking trip around the world using Rohloff.

36H versions of all the Speedhubs are available to order, please contact our sales desk

Disc not included... available here

To find out where to buy  Click Here
