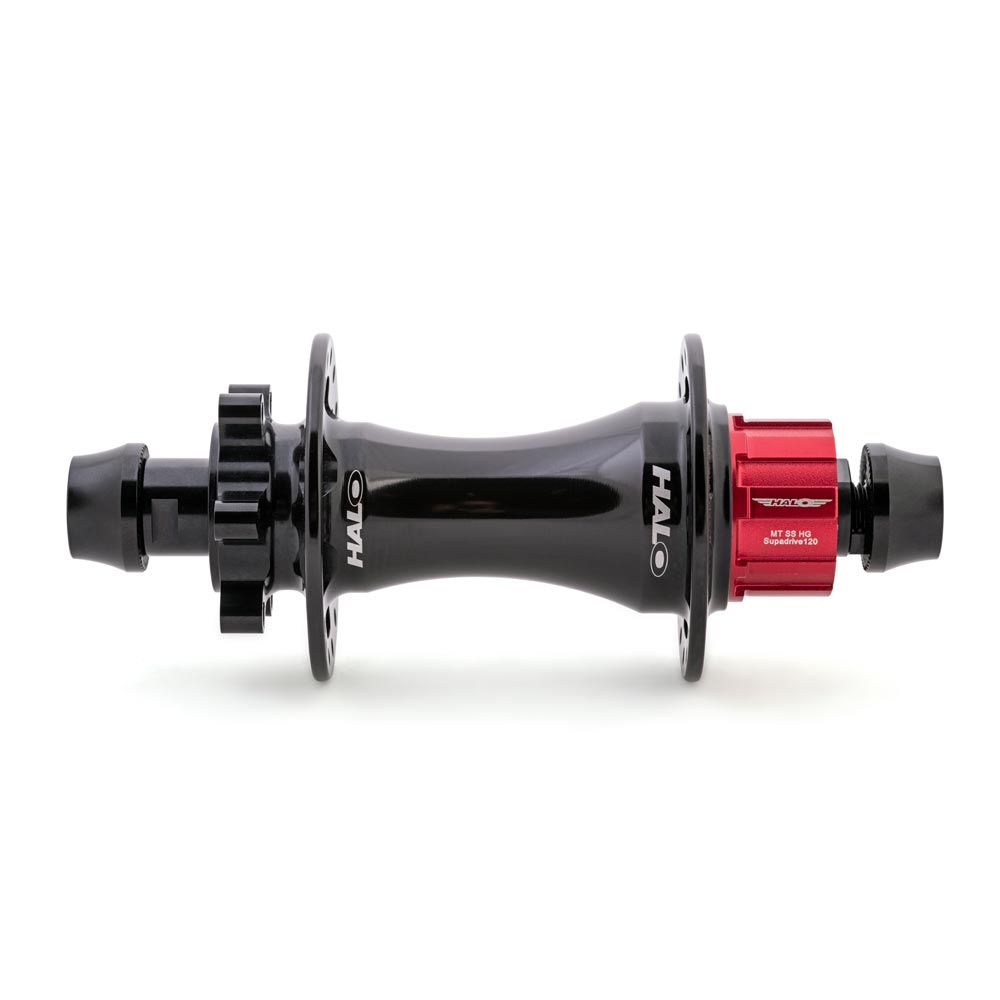

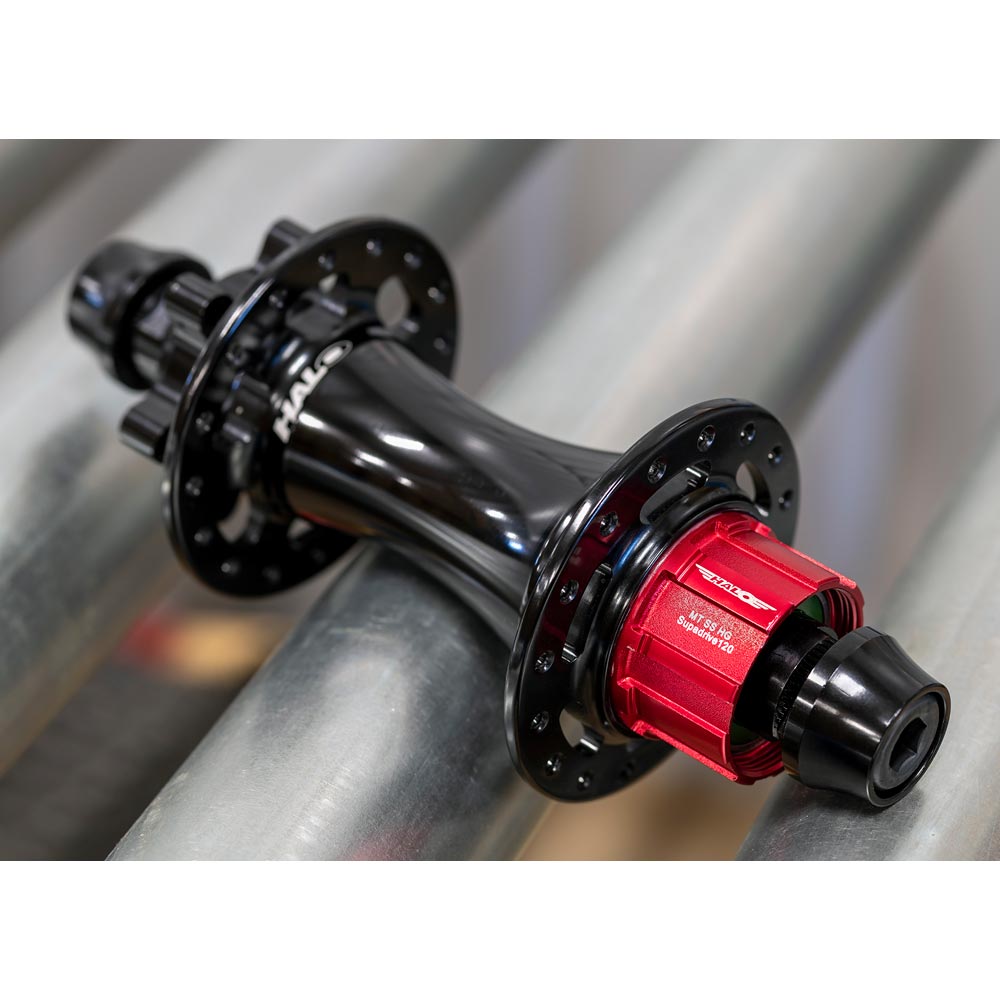

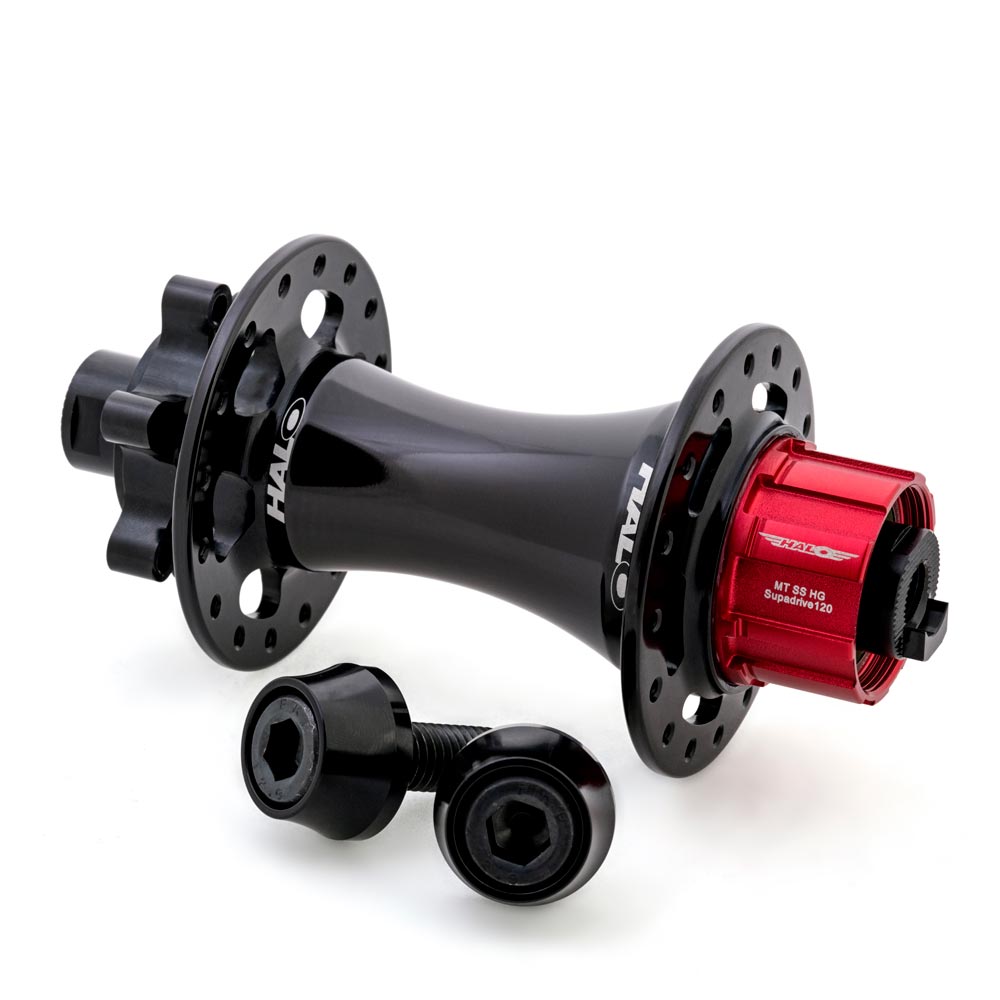

MT Supadrive SS Hub - Black

MT Supadrive SS Hub - Black

The MT Supadrive SS hub was made for a huge number of our customers that wanted a single speed specific mountain bike hub, with high engagement.

The MT Supadrive SS hub utilises Supadrive, our most advanced and reliable drive system to date. The MT Supadrive SS hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level.

Wide spoke flanges and sealed cartridge bearings in the MT Supadrive SS hub ensure longevity.

Chainline is adjustable on the MT Supadrive SS thanks to the short width freehub, where cog placement can be adjusted to minimise chain wear and failures.

This hub can be run with most MTB frames including 135 x 10mm, 142 x 12mm Thru or 148 x 12mm Boost  using our optional modular axle kits and conversions.

Please note this hub must be run with a fat footed type sprocket.

Hub Options -

HUHASVS2K

135mm x M10 Nutted

Cassette spacer kit - 1x 5mm, 2x 2.5mm, 1x 0.5mm and Lock ring

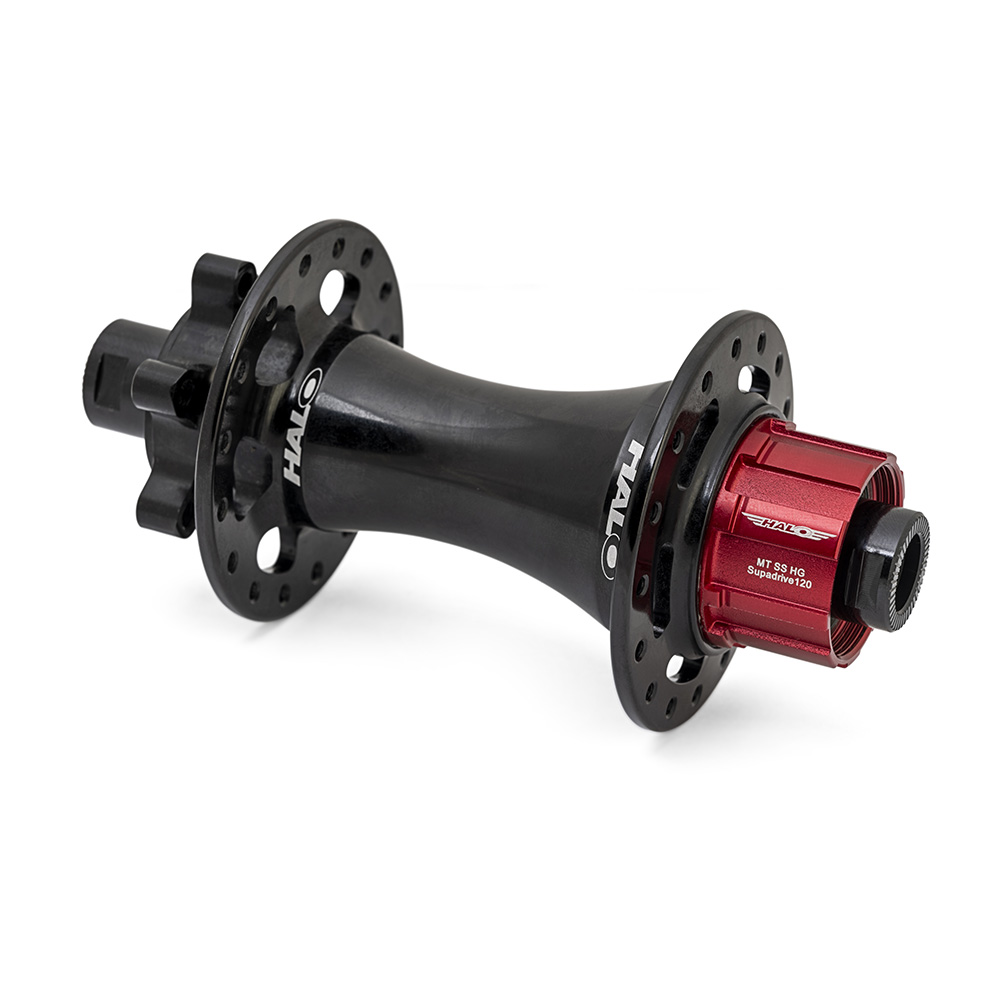

HUHASVT2K

142mm x 12mm  Thru

Cassette spacer kit - 1x 5mm, 2x 2.5mm, 1x 0.5mm and Lock ring

Optional Fittings

148 x 12mm Boost conversion kit (Halo item # HXHASVTB) Please note this only works on the Thru Axle hub HUHASVT2K

_{Note: must be run with “Fat Foot” type sprocket}

Specifications

• Shell Material 6061 Alloy
• Drillings 32H
• Axle Material 7075 Alloy
• Axle Dimensions M10 x 135mm
• Disc Mount IS 6-bolt
• Ratchet 120 teeth triple-wedge pawl mechanism
• Freehub Type Mini HG
• Freehub Material 7075 Alloy
• Spoke Hole Circle Diameter (PCD) 58mm
• Centre to Flange C-L 34mm, C-R 37mm
• Bearings 2 x 6902 (hub) 1 x 6802 and 1 x 6902 (Freehub)
• OLD (Spacing) 135mm
• Model Ref MTSS S-DRV-FG
• Colour Anodised black

To find out where to buy  Click Here
