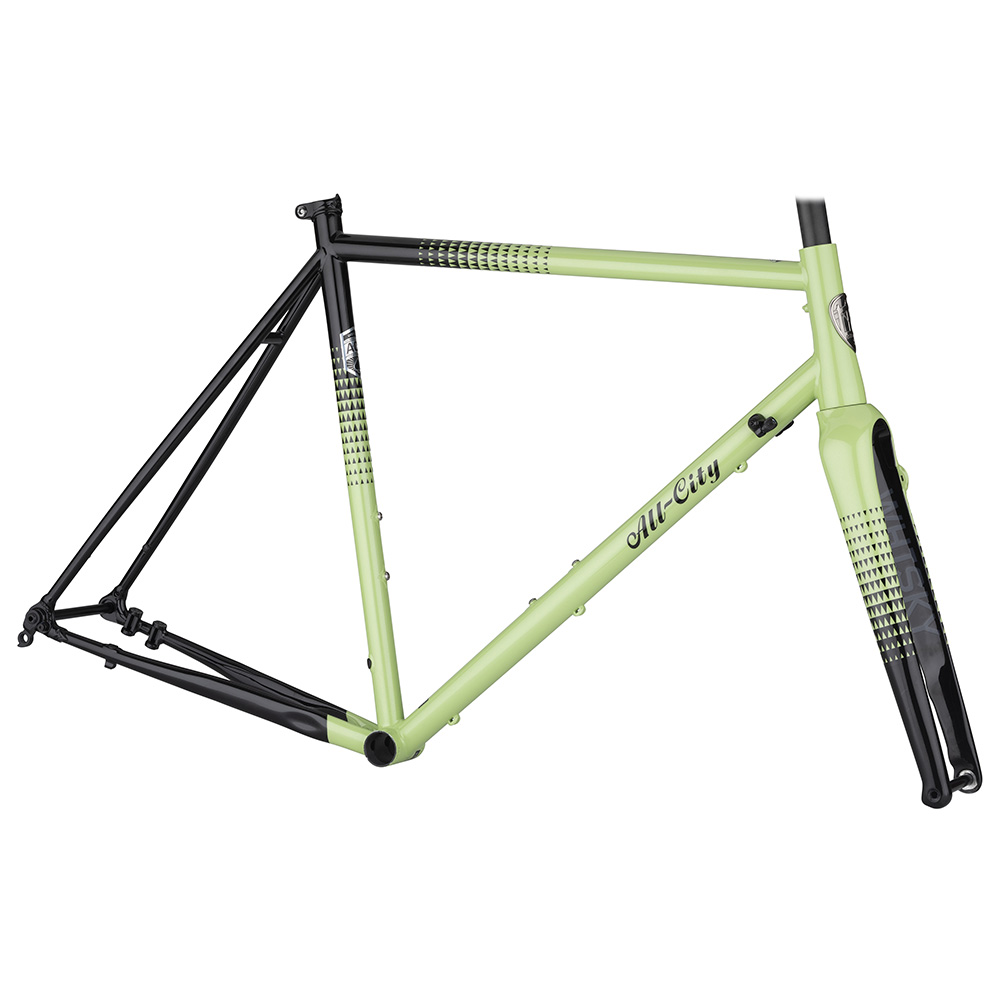

Zig Zag Frameset - Honeydew Bling

The Zig Zag.

Our answer to what a modern road bike should be. An evolution of the revolution that we started in 2012 with the Mr. Pink, taken to the logical next step through the righteous application of new technology.

We built it to be a ripping fast and efficient machine that shields the rider from road chatter and unnecessary fatigue allowing them to go further, faster, and have more fun.

The addition of disc brakes provides confidence in all-weather conditions and allows ultimate control on descents. The thru-axles add stiffness and enhance sprinting prowess, ensuring that no power is wasted. The custom drawn A.C.E. tubeset was created to shave weight and soak up bumps leaving you fresher, longer. Our famed road geometry strikes a perfect balance between aggression and comfort for long days in the saddle or attacks off the front. Because we like to explore the world around us, the bike accommodates up to a 35c tyre, making it more than capable of multi-surface riding. You’ll also find all of the All-City attention to detail that you’ve come to expect: a custom head badge, Signature dropouts, Signature brazed-on seat collar, pump peg, two bottle bosses, and mudguard mounts (available to be purchased separately for Whisky fork)

Specifications

• Frame Construction All-City A.C.E. Air-Hardened, Custom, Extruded steel
• Fork Construction Whisky No.9 thru-axle, carbon blades, tapered carbon steerer tube, Flat-mount disc brake
• Rear Dropout Replaceable derailleur hanger; '687' (FS2339)
• Rear Hub Spacing 142 x 12mm; thru-axle; Ø12 x 167mm , TP=1.5, TL=12
• Front Hub Spacing 100 x 12mm; thru-axle; Ø12 x 120mm , TP=1.5, TL=12
• Rear Brake Flat mount, 140mm to 160mm
• Front Brake Flat mount, 140mm to 160mm
• Headtube 1 1/8" - 1 1/2" tapered
• Steerer Tube Ø28.6mm
• Crown Race Ø40mm
• Headset Upper S.H.I.S)EC34
• Headset Lower (S.H.I.S)EC44
• Seat Collar All-City Brazed-on Clamp
• Seatpost 27.2mm
• Front Derailleur 28.6 Band Clamp
• Max Chainring (CL) 1x crankset: max 54t, min 38t, 2x crankset: max 53/39, min: 46/32, 3x crankset: 50/39/30
• Tyre Clearance Frame 700c x 35mm w/o Mudguards; 700c x 32mm w/ Mudguards
• Tyre Clearance Fork 700x35
• Rigid Fork Spec 386mm Axle to Crown; 51mm offset
• Bottle Mounts Frame two mounts, inside front triangle
• Other Features E.D. coated for durability and rust prevention
