Darwin MT Fork
Darwin MT forks are ideal for your next adventure bike project requiring a short, rigid Mountain bike type fork, complete with multiple lugs for racks and full of premium Cr-Mo fork features.
Features
- Strong and light, tapered, multi-butted legs.
- QR-type dropouts (standard 100x9mm hub fitting)

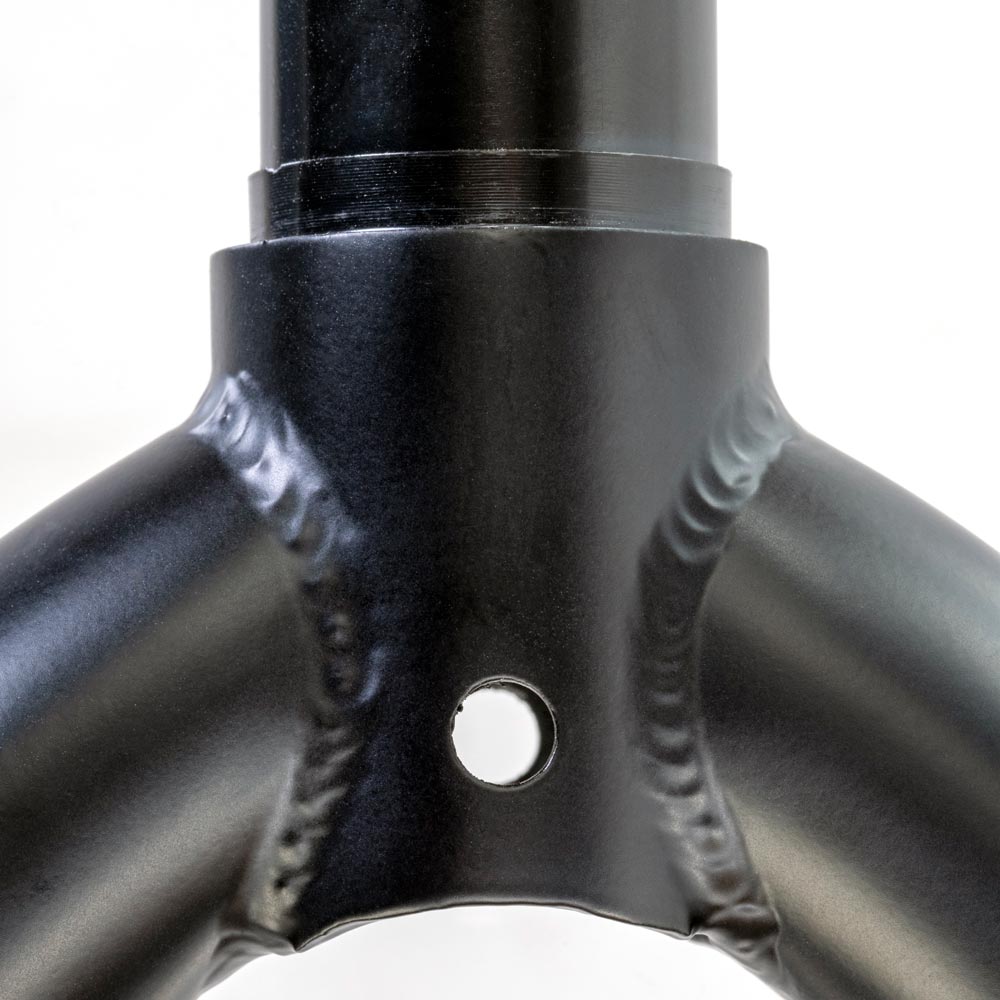

- Tig-welded together and post-weld heat treated for ultimate rigidity and durability.
- Corrosion-resistant Black ED coated, with Satin Black paint finish.

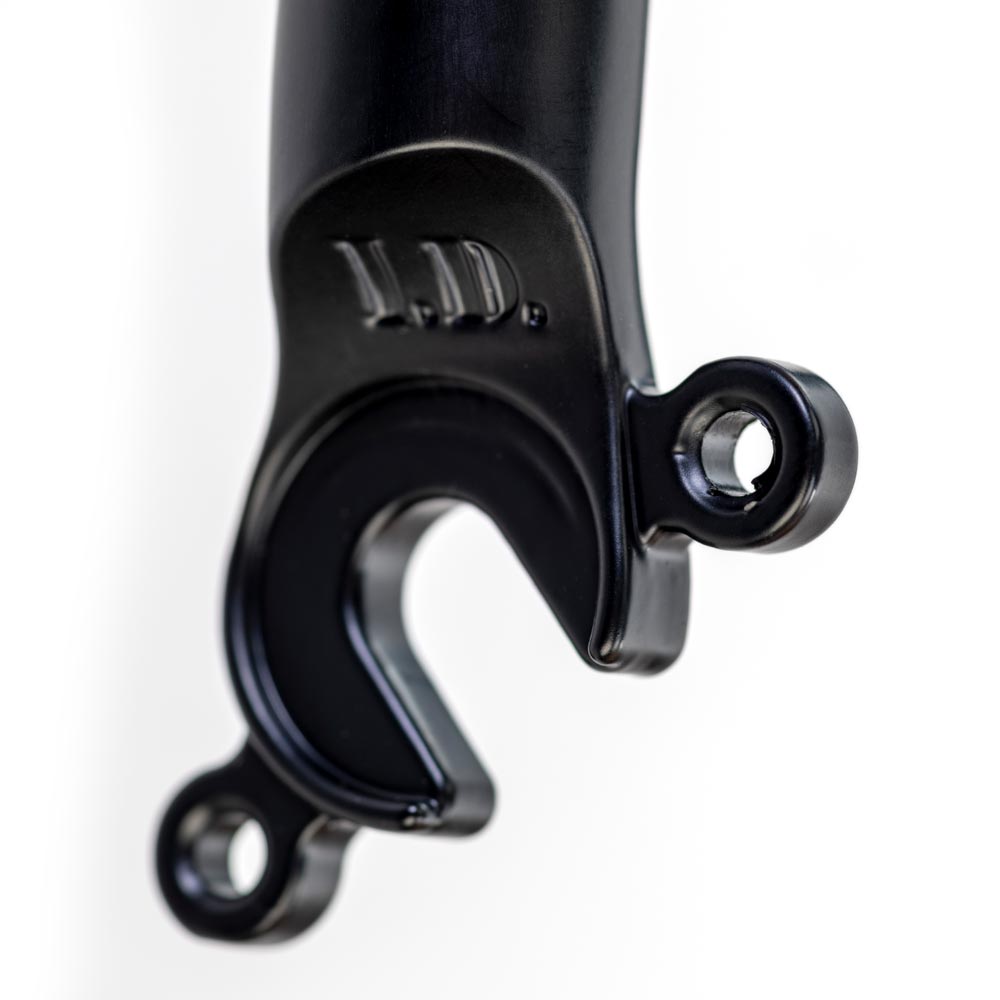

- Strong, custom-forged dropouts with integrated rack and mudguard eye mounts.

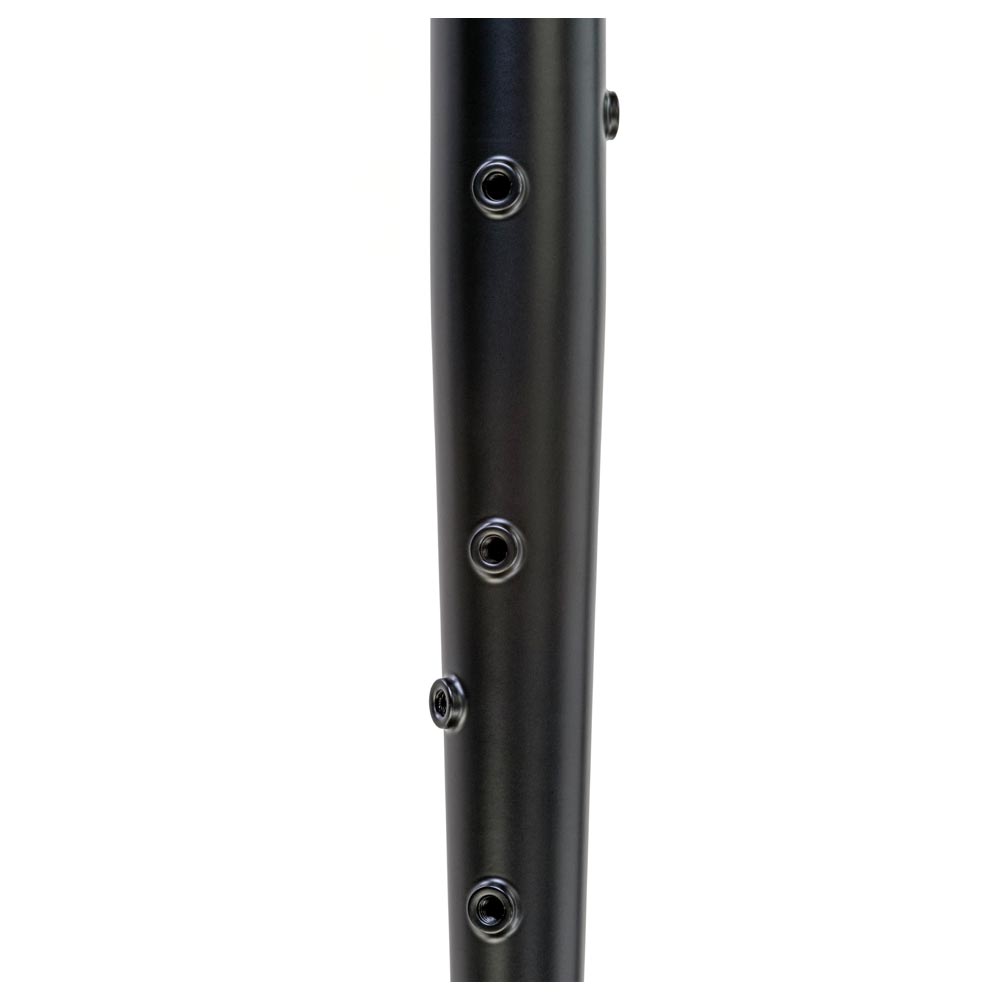

- Reverse ¾ angle Lug-Cage triple boss mounts.
- Centre leg mounts front-rack mounts.
- Centre leg ‘backside’ mudguard stay mounts.
- Bolt-in cable guide for easy maintenance.

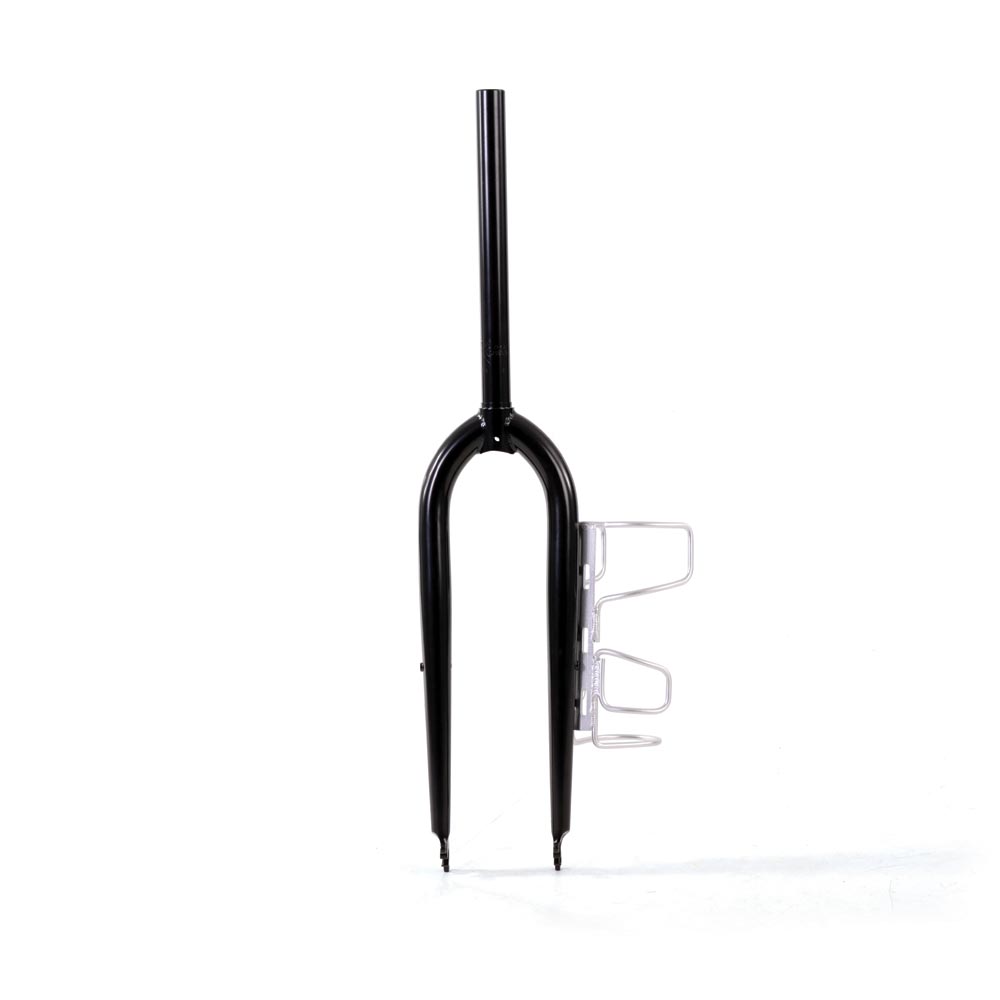

Shown with optional Lug-Cage
Specifications
- Material Butted Cr-Mo steel with CNC machined steerer
- Axle to Crown Measurement 425mm
- Steerer 1 1/8" x 280mm
- Brake Mount IS Disc
- Crown race 30mm (straight 1 1/8")
- Rake 45 or 50mm
- Dropouts 5mm Cr-Mo with cut-out and CNC relieving
- Max Rotor Size 180mm
- Tyre Clearance up to most 29x2.2"
- Colour Black
