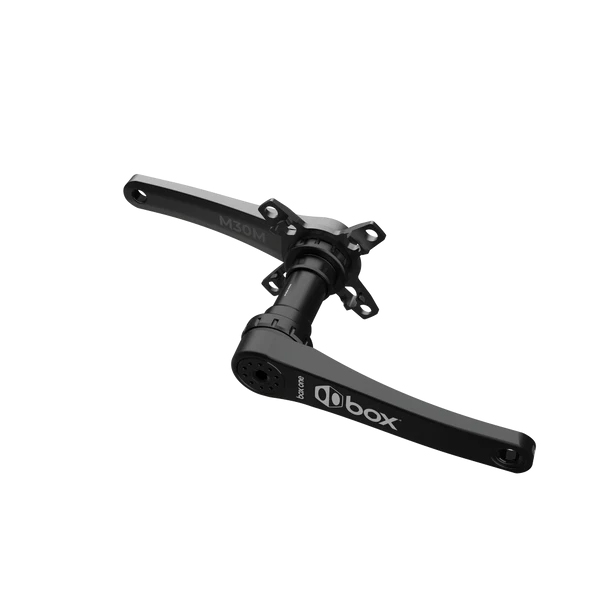

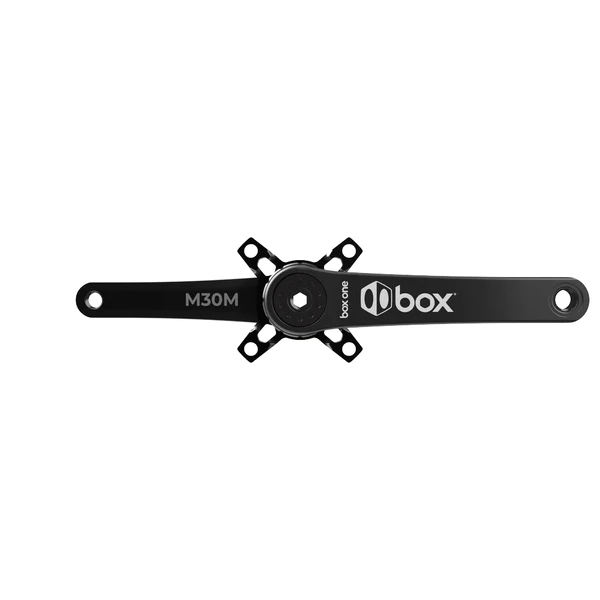

Box One Oversized M30-M Crankset

All Box One and Two cranksets are engineered and crafted using our Oversized Technology. We all know there is no use pushing hard on your pedals if you can’t deliver most of that power to the rear wheel. While creating our cranks, we were obsessed with Power delivery AKA pedalling stiffness. To reduce lateral deflection at the bottom bracket we chose to enlarge the spindle and the crank arm’s interfaces. We robbed material from unloaded sections to reinforce these zones of high stress. Not only are you going to be more efficient with power delivery, but you’ll also feel the instant response of acceleration. Seen through another lens, less energy will be required to achieve the same elapsed time.

The Box One M30 crankset is just as tyrannical as its big brother the Box One M35. Since it's designed for the smaller rider the now 30mm spindle is as extreme to a smaller rider as the 35mm is to a burly world champion. The crank arms are hollow-forged but reduced in size for their application. It is possible to add too much stiffness that the rider will not feel the benefit. Going beyond that point simply adds material which is surplus weight. We’ve removed the stabiliser rings from the spider and removed unneeded material from its legs. These cranks are engineered for the smaller-sized racer.

IMPORTANT NOTES:

• BB86 frames require Praxis™ part 86-4001B or 86-4001W.
• BB30/PF30 frames require Praxis™ part 68-4001R or 68-5401R.
• T47 frames require Praxis™ part 47-0000.

Do not use pedal washers when installing pedals onto these cranks. M30-M cranks were designed to be used without pedal washers

Specifications

• Material Hollow-Forged & CNC 7075 T-6 Aluminium
• BCD 4 Bolt 104 BCD
• Chainline 44.5mm
• Q-Factor 153mm
• Bottom Bracket BSA 30mm (Included)
